Jewellery, Scientific

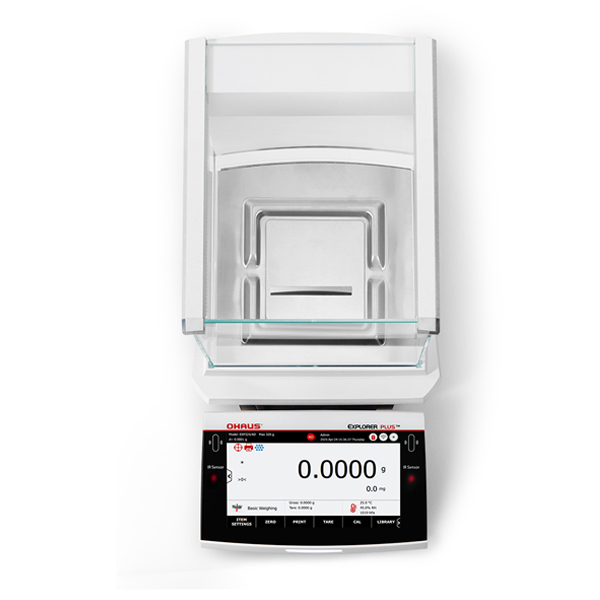

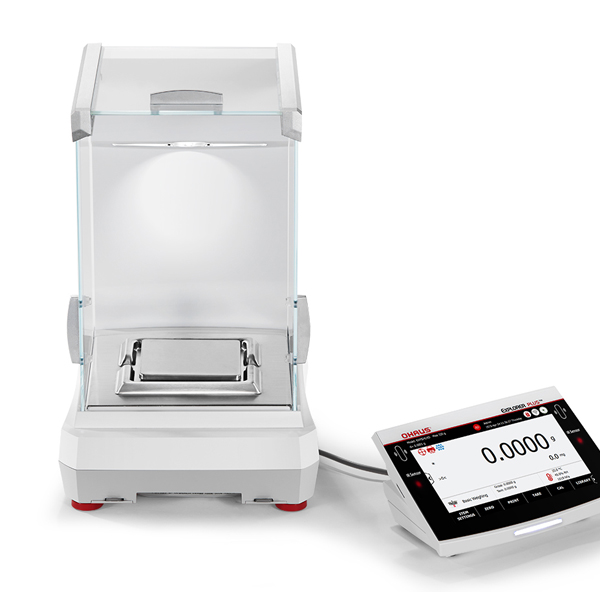

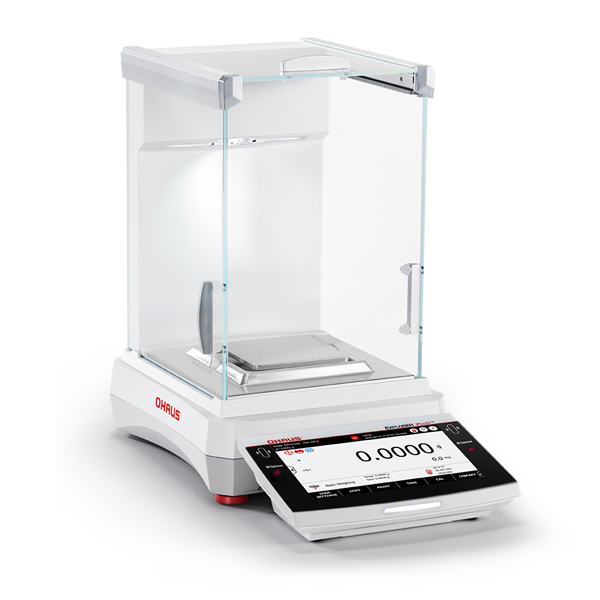

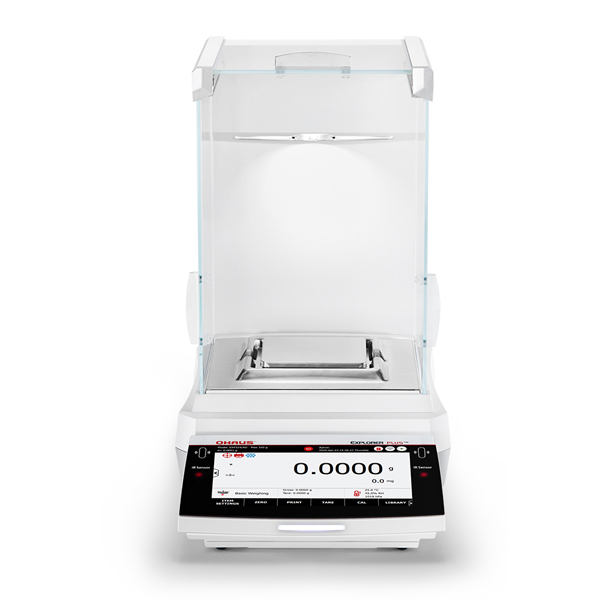

Explorer Plus™ Analytical EXP
Overview
Engineered for Accuracy, Designed for Demanding Applications
Specifications
| Model | EXP124/AD | EXP224/AD | EXP324/AD |
| Maximum Capacity | 120g | 220g | 320g |
| Readability | 0.1g | 0.1g | 0.1g |
| Pan Size | 90 mm x 90 mm | ||
| General Specifications | |||||||||
| Internal Calibration | AutoCal™ - Automatic | ||||||||
| Draftshield | Included | ||||||||
| Dimensions | 408 mm x 372 mm x 229 mm (LxHxW) | ||||||||
| Battery Life | Not Applicable | ||||||||
| Legal for Trade | Not Applicable | ||||||||
| Auxiliary Display Model | Available as an Accessory | ||||||||
| Auto Door | Anti-pinch autodoors | ||||||||
| Tare Range | To capacity by subtraction | ||||||||
| Working Environment | 10°C – 30°C, 80% RH, non-condensing | ||||||||
| Net Weight | 7.8 kg | ||||||||
| In-Use Cover | Included | ||||||||
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) | ||||||||
| Power | AC Adapter (Included) | ||||||||
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Tola; Mesghal; Carat; Ounce | ||||||||
| Minimum Weight | 10 mg | ||||||||
| Display | 7" colour TFT touchscreen | ||||||||
| Pan Construction | Stainless Steel | ||||||||
| Built-in Ionizer | Yes | ||||||||
| Stabilization Time | 2 s | ||||||||
| Repeatability, typical | 0.1 mg | ||||||||
| Minimum Weight (USP, 0.1%, typical) | 100 mg | ||||||||
| Linearity ± | 0.2 mg | ||||||||
Features
- Anti-vibration design
- Bright LCD for dim shops
- Piece counting mode
- Calibration weights available
