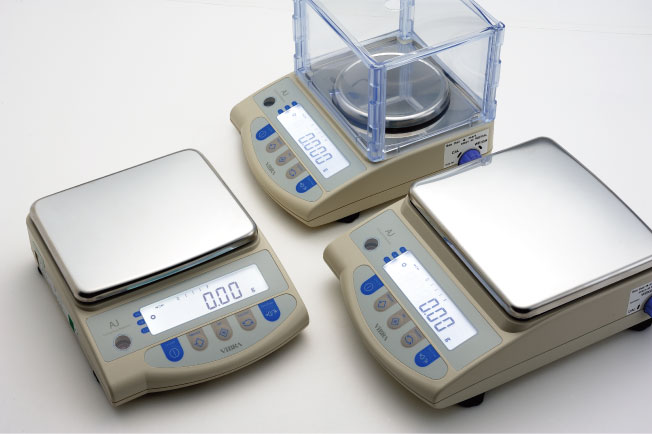

AJ/AJH series - Image 1

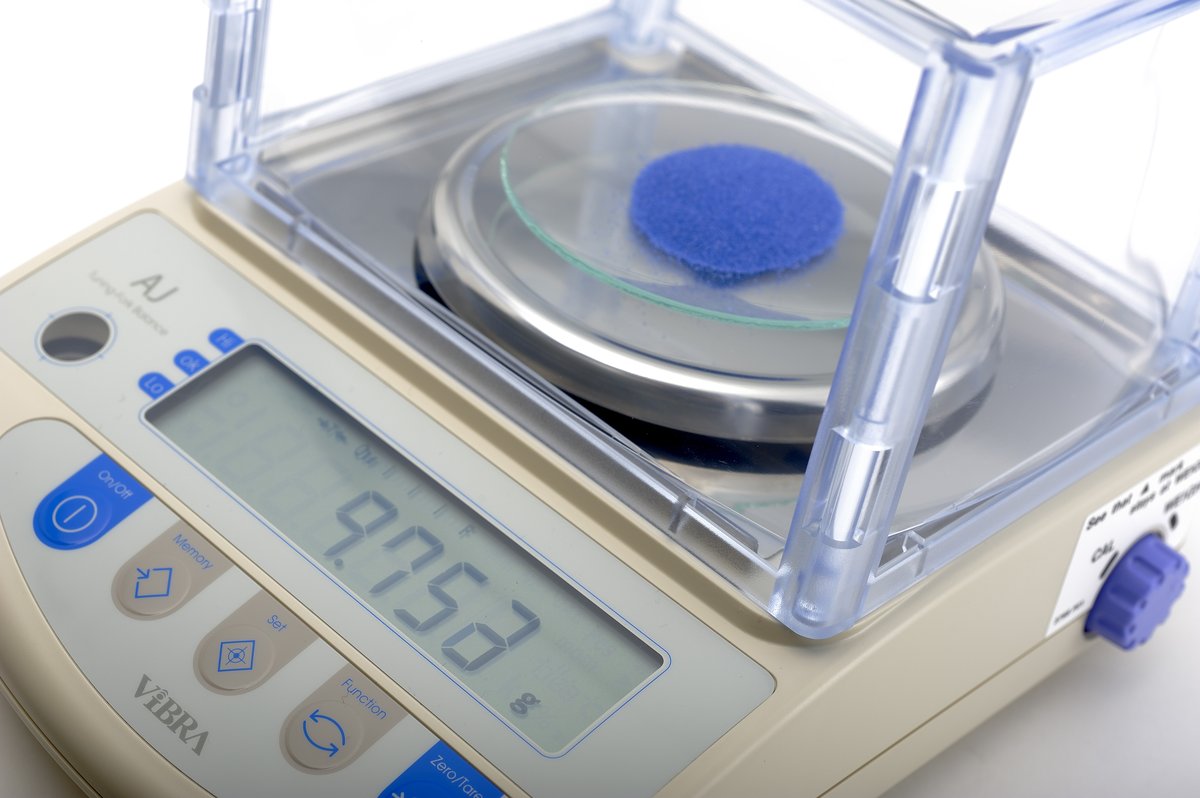

AJ/AJH series - Image 2

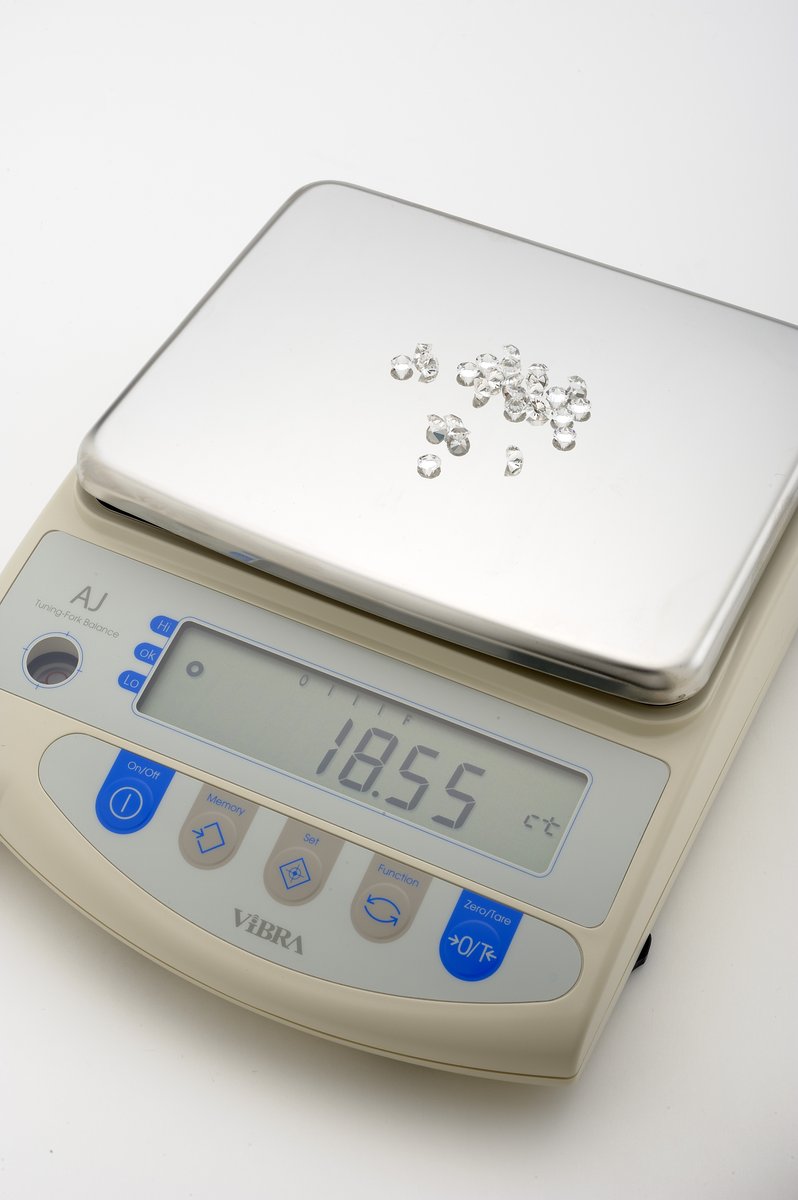

AJ/AJH series - Image 3
Jewellery, Scientific

AJ/AJH series

Overview

Precision Balance

Capacity：220g〜12kg／Readability：0.001g～0.1g

SHIMPLE IS THE BEST.

Specifications

AJH Series (220g - 620g)
Model nameAJH-220E / AJH-220CENAJH-320E / AJH-320CENAJH-420E / AJH-420CENAJH-620E / AJH-620CEN
Capacity220g320g420g620g
Readability (d)0.001g0.001g0.001g0.001g
Verification intervals (e)0.01g0.01g0.01g0.01g
Accuracy classⅡⅡⅡⅠ
Repeatability0.001g0.001g0.001g0.001g
Linearity±0.001g±0.001g±0.001g±0.001g
Stabilization time3.0 sec.3.0 sec.3.0 sec.3.0 sec.
Pan size118mm dia
Dimentions(WDH)182×235×168mm (Including Windshield)
Windshield○○○○
AJH Series (2200g - 4200g)
Model nameAJH-2200E / AJH-2200CENAJH-3200E / AJH-3200CENAJH-4200E / AJH-4200CEN
Capacity2200g3200g4200g
Readability (d)0.01g0.01g0.01g
Verification intervals (e)0.1g0.1g0.1g
Accuracy classⅡⅡⅡ
Repeatability0.01g0.01g0.01g
Linearity±0.01g±0.01g±0.01g
Stabilization time3.0 sec.3.0 sec.3.0 sec.
Pan size180×160mm
Dimentions(WDH)192×265×87mm
Windshield×××
AJ Series (220g - 1200g)
Model nameAJ-220E / AJ-220CENAJ-320E / AJ-320CENAJ-420E / AJ-420CENAJ-620E / AJ-620CENAJ-820E / AJ-820CENAJ-1200E / AJ-1200CEN
Capacity220g320g420g620g820g1200g
Readability (d)0.001g0.001g0.001g0.001g0.01g0.01g
Verification intervals (e)0.01g0.01g0.01g0.01g0.01g0.1g
Accuracy classⅡⅡⅡⅠⅠⅡ
Repeatability0.001g0.001g0.001g0.001g0.01g0.01g
Linearity±0.001g±0.001g±0.001g±0.002g±0.01g±0.01g
Stabilization time2.5 sec.2.5 sec.2.0 sec.2.0 sec.2.0 sec.2.0 sec.
Pan size118mm dia170×142mm
Dimentions(WDH)182×235×168mm (Including Windshield)182×235×75mm
Windshield○○○○××
AJ Series (2200g - 12000g)
Model nameAJ-2200E / AJ-2200CENAJ-3200E / AJ-3200CENAJ-4200E / AJ-4200CENAJ-6200E / AJ-6200CENAJ-8200E / AJ-8200CENAJ-12KE / AJ-12KCEN
Capacity2200g3200g4200g6200g8200g12000g
Readability (d)0.01g0.01g0.01g0.01g0.1g0.1g
Verification intervals (e)0.1g0.1g0.1g0.1g1g1g
Accuracy classⅡⅡⅡⅠⅡⅡ
Repeatability0.01g0.01g0.01g0.01g0.1g0.1g
Linearity±0.01g±0.01g±0.01g±0.02g±0.1g±0.1g
Stabilization time2.5 sec.2.5 sec.2.5 sec.3.0 sec.2.5 sec.2.5 sec.
Pan size180×160mm
Dimentions(WDH)192×265×87mm
Windshield××××××

Features

  • Simple but profound
  • Vast potential in the compact housing
  • For laboratory, factory, jewelry shops, etc...
  • Quick response and stable indication
  • OIML and EU class2, class 1 approved
