TSC TTP 244 Pro Barcode Printer
Overview
The TSC TTP-244 Pro is a highly popular, rugged, and compact desktop barcode printer designed to support high-volume, low-cost labeling needs. It supports both thermal transfer and direct thermal printing, allowing it to produce crisp text, barcodes, and graphics
Specifications
| Printing Method | Thermal Transfer & Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max. Print Speed | Up to 5 ips (127 mm/s) |
| Max. Print Width | 4.25 inches (108 mm) |
| Max. Print Length | 90 inches (2,286 mm) |
| Processor | 200 MHz 32-bit RISC CPU |
| Memory | 4 MB Flash, 8 MB SDRAM (expandable up to 4GB via SD card) |
| Ribbon Capacity | 300m length, max OD 67mm, 1" core |
| Media Width | 25.4 mm to 112 mm(1.0" to 4.4") |
| Label Roll Capacity | Up to 110 mm(4.33") Outer Diameter |
| Connectivity | USB 2.0 and RS-232 serial interfaces |
| Printer Language | TSPL-EZ™ (Compatible with EPL, ZPL, ZPL II) |
| Dimensions | 232mm (W) x 156mm (H) x 288mm (D) |
| Weight | 2.5 kg (5.51 lbs) |
Features
- Design: Compact footprint with a durable, dual-motor gear-driven design for heavy workloads
- Media Capacity: Handles up to a 4.3-inch (110 mm) outer diameter (OD) media roll internally. It also supports an optional external roll mount for larger 8.4-inch OD rolls.
- Sensors: Gap sensor, black mark sensor, and ribbon end sensor

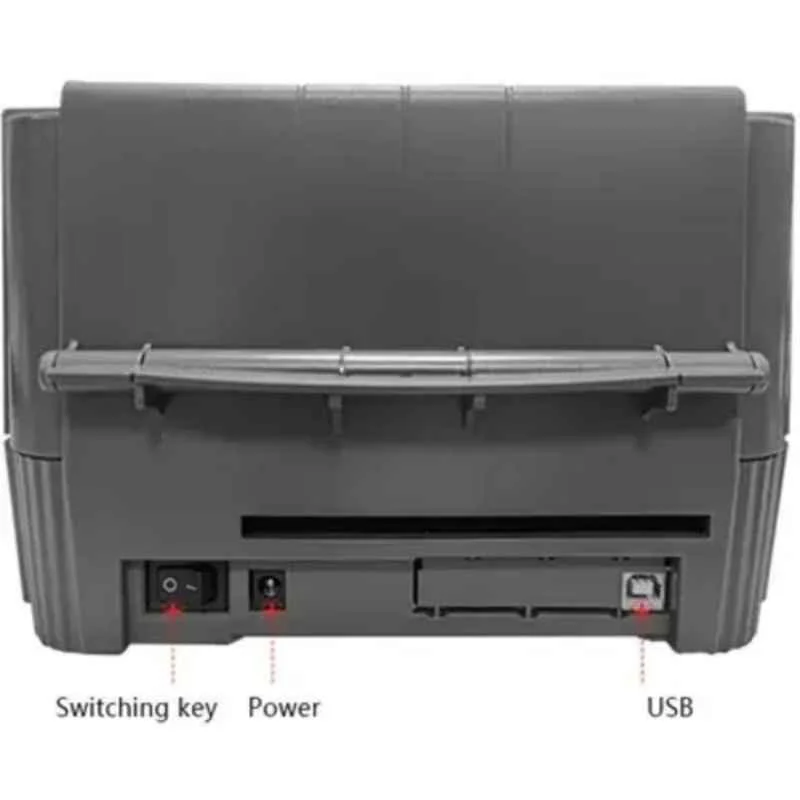

- Standard Interfaces: USB 2.0 and RS - 232 serial ports
- Firmware: TSPL - EZ firmware, which allows it to seamlessly emulate Zebra(ZPL) and Eltron(EPL) printer languages out of the box.
- Software: Usually bundled with free Windows drivers and basic labeling software
