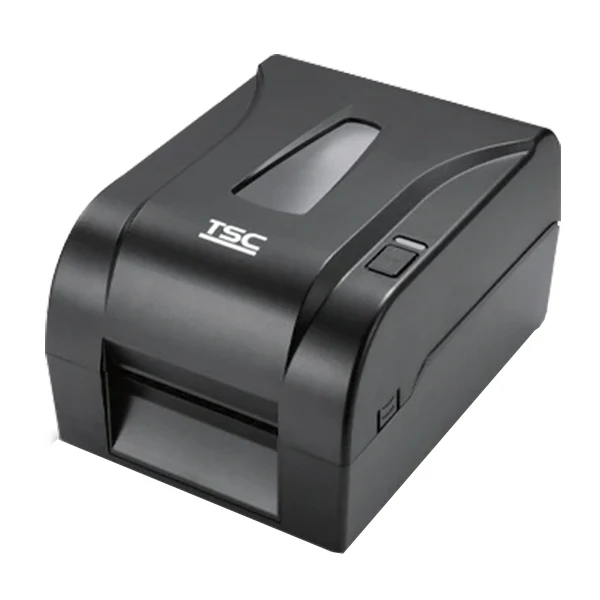

TSC Ta220 Barcode Printer
Overview
The TSC TA220 Barcode Printer is a compact yet powerful printing solution designed to deliver superior performance, speed, and precision. With its versatile capabilities
Specifications
| Model Number | TA220 Barcode And Label |
| Resolution | 8 dots / mm(2 - 3dpi) |
| Print Method | Thermal Transfer & Direct Label Printer |
| Max.print speed | 152.4 mm(6”) / second |
| Max.print width | 108 mm(4.25“) |
| Max.print length | 25, 400 mm(1000“) |
| Enclosure | ABS plastic |
| Physical dimension | 211 mm(W) x 164 mm(H) x 286 mm(D) |
| Weight | 2.5 kg(5.51 lbs) |
| Label roll capacity | 127 mm(5“) OD |
| Ribbon | 300 m long, max.OD 67 mm, 1” core(ink coated outside), 110 m long, max.OD 40 mm, 0.5” core(ink coated outside) |
| Ribbon width | 40 mm ~110 mm(1.6” ~4.3”) |
| Processor | 32 - bit RISC CPU |
| Memory | 128 MB Flash memory, 64 MB SDRAM |
| Interface | USB 2.0, Internal Ethernet, 10 / 100 Mbps, RS232, USB host, for scanner or PC keyboard |
| Power | External universal switching power supply. Input: AC 100 - 240V, 2.5A, 50 - 60Hz. Output: DC 24V, 2.5A, 60W |
| Sensors | Transmissive gap sensor, Black mark reflective sensor, Ribbon end sensor, Head open sensor |
| Bar code | 1D bar code, 2D bar code (GS1 DataBar, PDF417, QR Code, Micro PDF 417) |
| Printer language | TSPL - EZD |
| Safety regulation | BIS |
| Environmental concern | Comply with RoHS, REACH, WEEE |

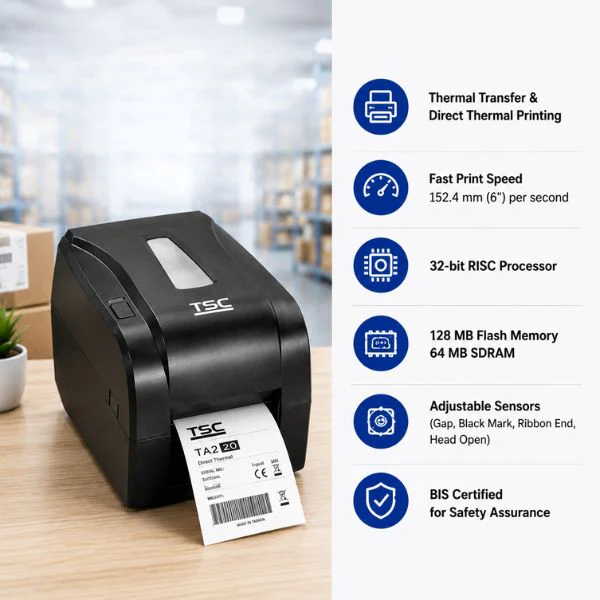

Features
- Supports both Thermal Transfer and Direct Thermal printing for versatility.
- Prints up to 152.4 mm(6") per second for fast and efficient operations.
- Powered by a 32 - bit RISC processor for smooth and fast processing.
- Equipped with 128 MB Flash memory and 64 MB SDRAM for efficient data storage and processing.
- Compact and lightweight, with an ABS plastic enclosure for durability.
- Adjustable sensors(gap, black mark, ribbon end, and head open) for precise media handling.
- Convenient LED indicators and buttons for easy operation.
- Font and barcode rotation options(0°, 90°, 180°, 270°) for flexible label design.
- RoHS, REACH, and WEEE compliant for eco - friendly operations.
- BIS certified for safety assurance.
