XRF Gold Analyzer

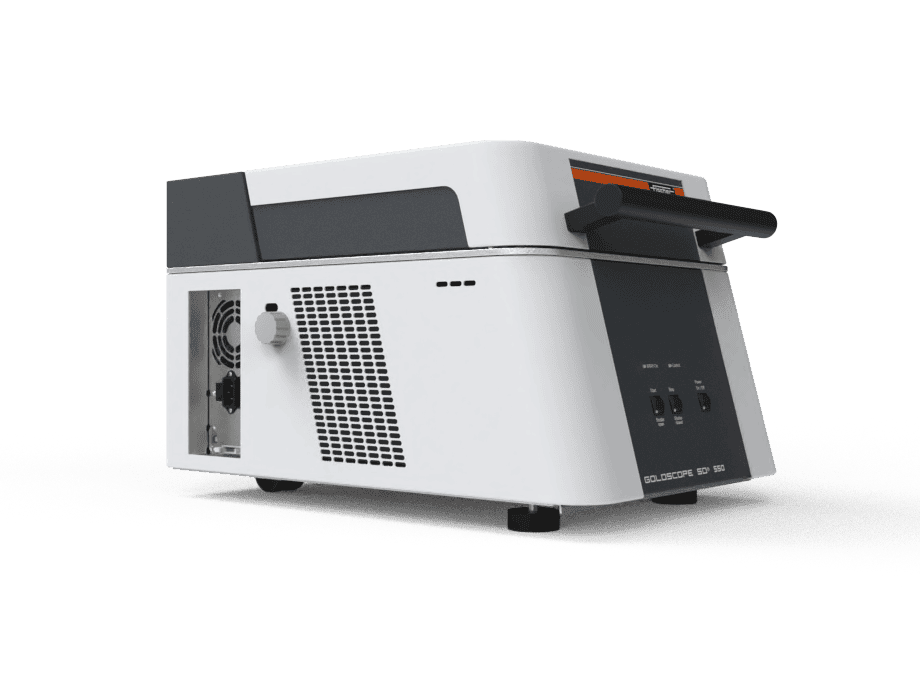

GOLDSCOPE SD 520
Overview
A benchtop gold checking machine with an upwards-opening hood, equipped with a high-end Silicon Drift Detector and DPP+.
Specifications
| Max Height | Sample size up to 60 mm |
| Accuracy | 0.1% (typical for gold and precious metals) |
| Response Time | Instantaneous to under 60 seconds |
| Mounting Type | Benchtop |
| Hardness | Not applicable (material independent) |
| Test Range | From PPM level to 100% |
| Test Width | Standard 1 cm area |
| Interface Type | USB, Ethernet |
| Port Size | Standard analysis chamber |
| Humidity | Ambient 15% - 85% |
| Features | Non-destructive, rapid analysis, database storage, customizable reports |
| Temperature | Ambient 15C - 35C |
| Operating Voltage | 100-240 V AC, 50/60 Hz |
| Resolution | <130 eV (Mn K) |
| Capacity | High throughput XRF analysis |
| Usage | Laboratory / Industrial / Retail |
| Number of Specimens | Single or multiple |
| Application | Gold, precious metal and alloy analysis; quality control; authentication; jewelry, refinery, and production |
| Frequency | 50/60 Hz |
| Gas Pressure | Not required (air-cooled) |
| Specimen Size | 0.1 mm to 20 mm thick |
| Display Type | Large color touchscreen + PC display |
| Test Stroke | Manual, adjustable |
| Power Supply | 230 V, 50 Hz |
| Automation Grade | Semi-automatic |
| Control Mode | Fully automatic/PC software driven |
| Machine Weight | 70 kg |
| Equipment Type | High-precision X-ray fluorescence spectrometer |
| Measuring Range | Na (Sodium) to U (Uranium) |
| Test Speed | Upto 300 spectra/min |
| X-ray Tube | Current 1 mA |
| Sample Chamber Size | 120 mm x 120 mm x 60 mm |
| Analysis Time | 10-60 seconds (adjustable) |
| Spectral Range | 1 keV to 40 keV |
| Calibration Method | Pre-installed multi-matrix calibration |
| Detector Type | Silicon Drift Detector (SDD) |
| Software Compatibility | Windows 10 and above |
| Radiation Safety | Full lead shielding with interlock system |
| X-ray Tube | Voltage 50 kV max |
| Detection Limit | Lowest up to 1 ppm for gold |
| Data Output Format | PDF, Excel, CSV, Customizable printouts |
Features
- Non-destructive
- rapid analysis
- database storage
- customizable reports
