XRF Gold Analyzer

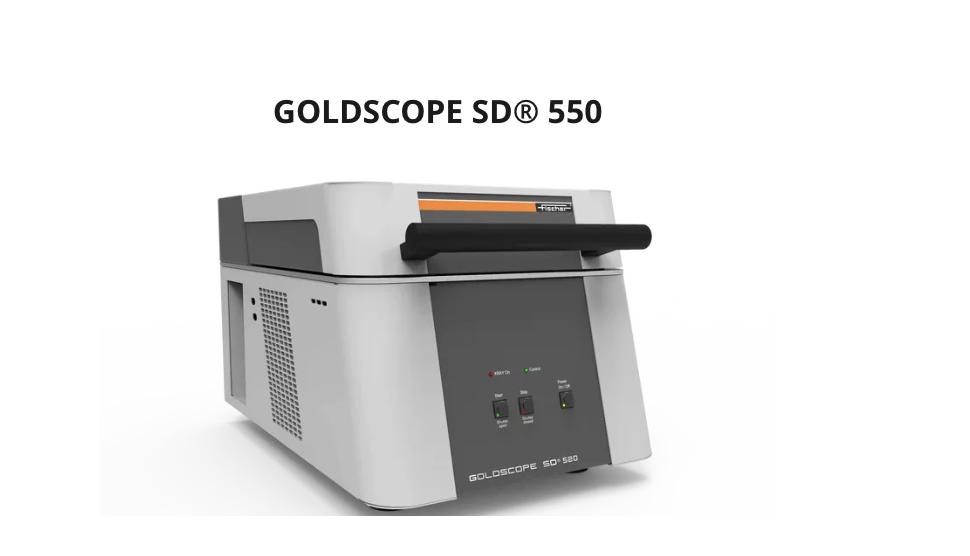

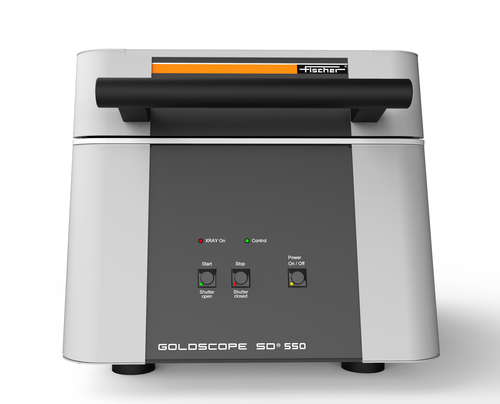

GOLDSCOPE SD 550
Overview
Equipped with a high-resolution Silicon Drift Detector (SDD) and multiple collimators, this gold testing machine is ideal for hallmarking, assaying, gold refineries, and testing centers.
Specifications
| Application | Precious Metal Analysis |
| Usage | Laboratory/Industrial |
| Automation Grade | Automatic |
| Mounting Type | Bench Top |
| Capacity | Up to 10 kgMachine Weight Approx. 90 kg |
| Display Type | TFT LCD Touchscreen |
| Test Width | 320 mm |
| Frequency | 50 Hz |
| Measuring Range | Elements from Al (13) to U (92) |
| Accuracy | 1% |
| Humidity | Up to 90% RH |
| Test Range | 0.005 - 2000 m |
| Number of Specimens | 1 |
| Features | Non-destructive testing, Automatic calibration, Auto focus, Data storage, Multi-language support |
| Port Size | Standard |
| Interface Type | USB, Ethernet |
| Gas Pressure | 5-8 bar |
| Operating Voltage | 230 V AC |
| Response Time | <3 seconds |
| Test Stroke | 250 mm |
| Resolution | 0.01 m |
| Specimen Size | 10 mm minimum |
| Temperature | 10C to 40C |
| Test Speed | 40 mm/sec |
| Equipment Type | X-ray Fluorescence (XRF) Spectrometer |
| Control Mode | Microprocessor Based |
| Power Supply | 230 V AC, 50 Hz |
| Max Height | 200 mm |
| Excitation Source | X-ray tube,50 kV |
| Detection Limit | 0.001% (10 ppm) |
| Detector Type | Silicon Drift Detector (SDD) |
| Operating System | Windows Embedded |
| Collimator Size | 0.2/0.5/1 mm |
| Protective Atmosphere | Optional nitrogen purge |
| Calibration | Multi-point automatic |
| Sample Holder | Multi-position, rotatableData Output PDF, Excel, CSV |
| Safety Features | Interlock, Radiation shield |
Features
- Non-destructive testing
- Automatic calibration
- Auto focus
- Data storage
- Multi-language support
