XRF Gold Analyzer

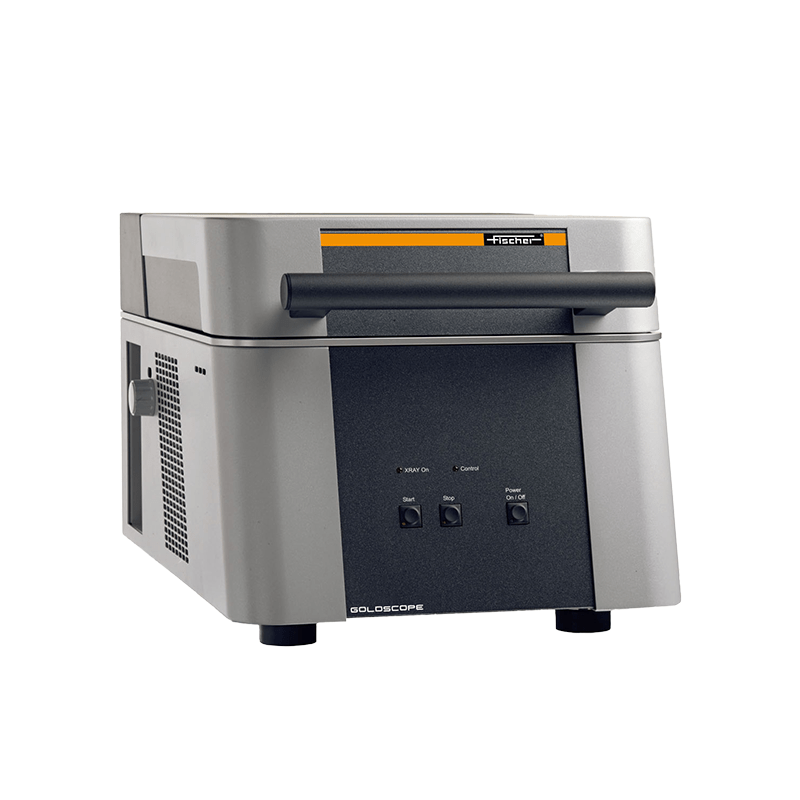

GOLDSCOPE SD 515
Overview
Reliable entry level gold purity testing machine for testing center
Specifications
| Measuring Range | 0.03 m and above (for coating thickness) |
| Automation Grade | Semi-automatic |
| Test Range | Al, Ti, Ni, Sn, Pb, Au, Ag, Pd, Rh, Ir, Ru, Zn, Cu, Cr, Fe, Co, Pt |
| Specimen Size | Sample Size up to 200 mm x 200 mm |
| Power Supply | 230 V AC 50/60 Hz |
| Resolution | 0.01 m (for coating thickness) |
| Machine Weight | Approx. 55 kg |
| Max Height | Sample Height up to 100 mm |
| Frequency | 50/60 Hz |
| Features | Microfocus X-ray tube, Silicon Drift Detector (SDD), Touchscreen operation, Auto-calibration |
| Operating Voltage | 230 V |
| Humidity | Max. 85% RH (non-condensing) |
| Display Type | Color Touchscreen Display |
| Accuracy | High; typically <1% for coating thickness |
| Usage | Gold, precious metal, coating analysis |
| Application | Precious metal analysis, coating thickness measurement |
| Equipment Type | X-Ray Fluorescence Spectrometer |
| Mounting Type | Benchtop |
| Control Mode | Touchscreen Control |
| Temperature | +15 C to +35 C |
| Interface Type | USB, LAN |
| Detector Type | High-resolution Silicon Drift Detector (SDD) |
| X-ray Tube | Microfocus tube, 50 W max, 50 kV/1 mA |
| Calibration | Automatic and manual options |
| Measurement Spot Size | Approx. 0.2 mm |
| Sample Chamber | Large, illuminated, with motorized Z-axis |
| Operation Modes | Standard and advanced analysis modes |
| Safety | Compliance with international X-ray safety standards |
| Data Storage | Integrated storage with export options |
| Standards Compliance | ISO 3497, ASTM B 568 |
| Analysis Software | GOLDSCOPE operating system with report generation |
| Dimensions | Approx. 580 x 610 x 405 mm (W x D x H) |
Features
- Detector : Silicon PIN ( SI-PIN) detector with peltier cooling
- Aperture (Collimator) : 1 mm / 0.6 mm
- Element range : Sulfur (16) to Uranium (92) up to 24 elements simultaneously
- Design: Bench top unit with top opening hood
- Repeatability : 1 for gold
- Measurement time : 30 seconds
