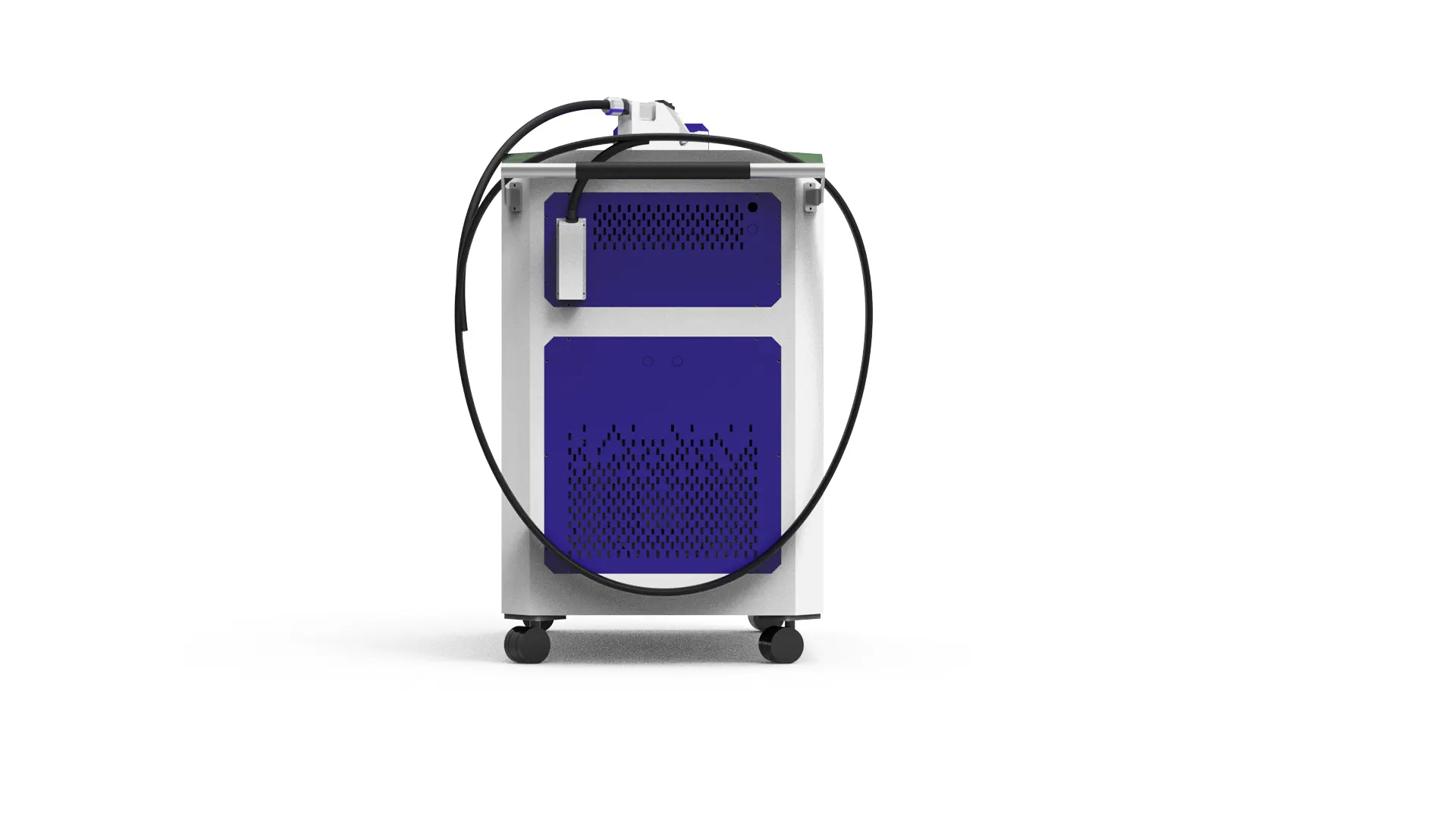

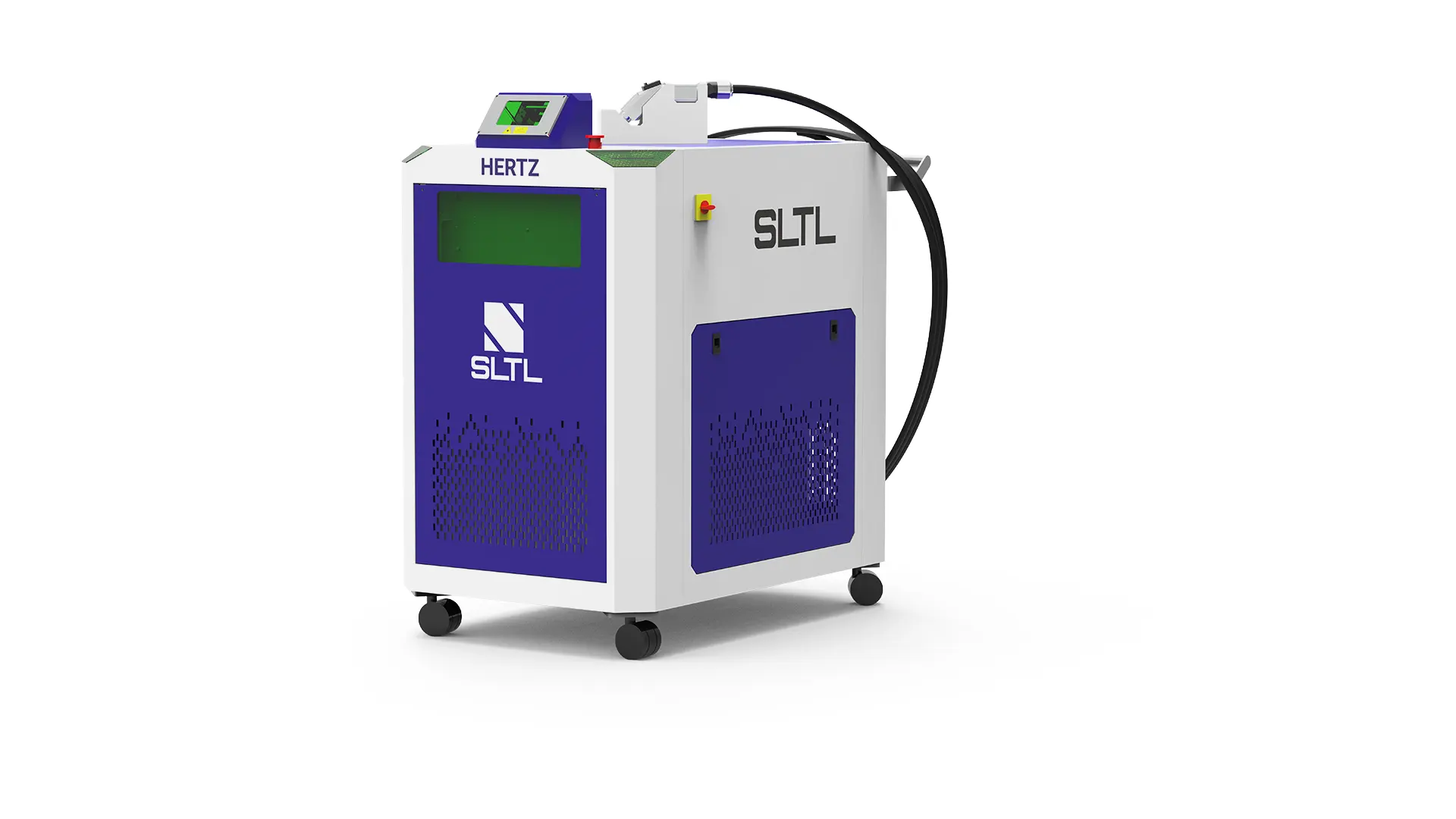

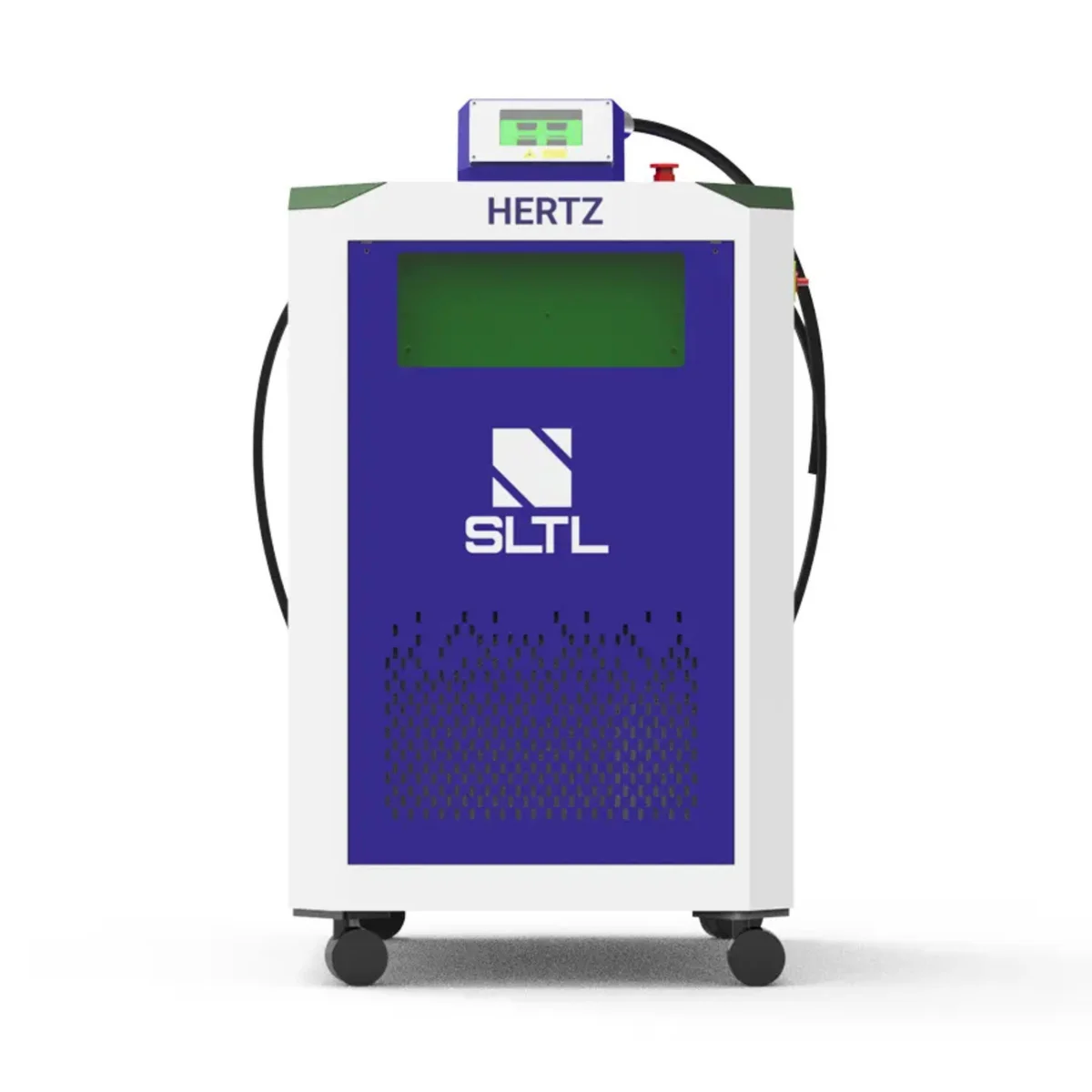

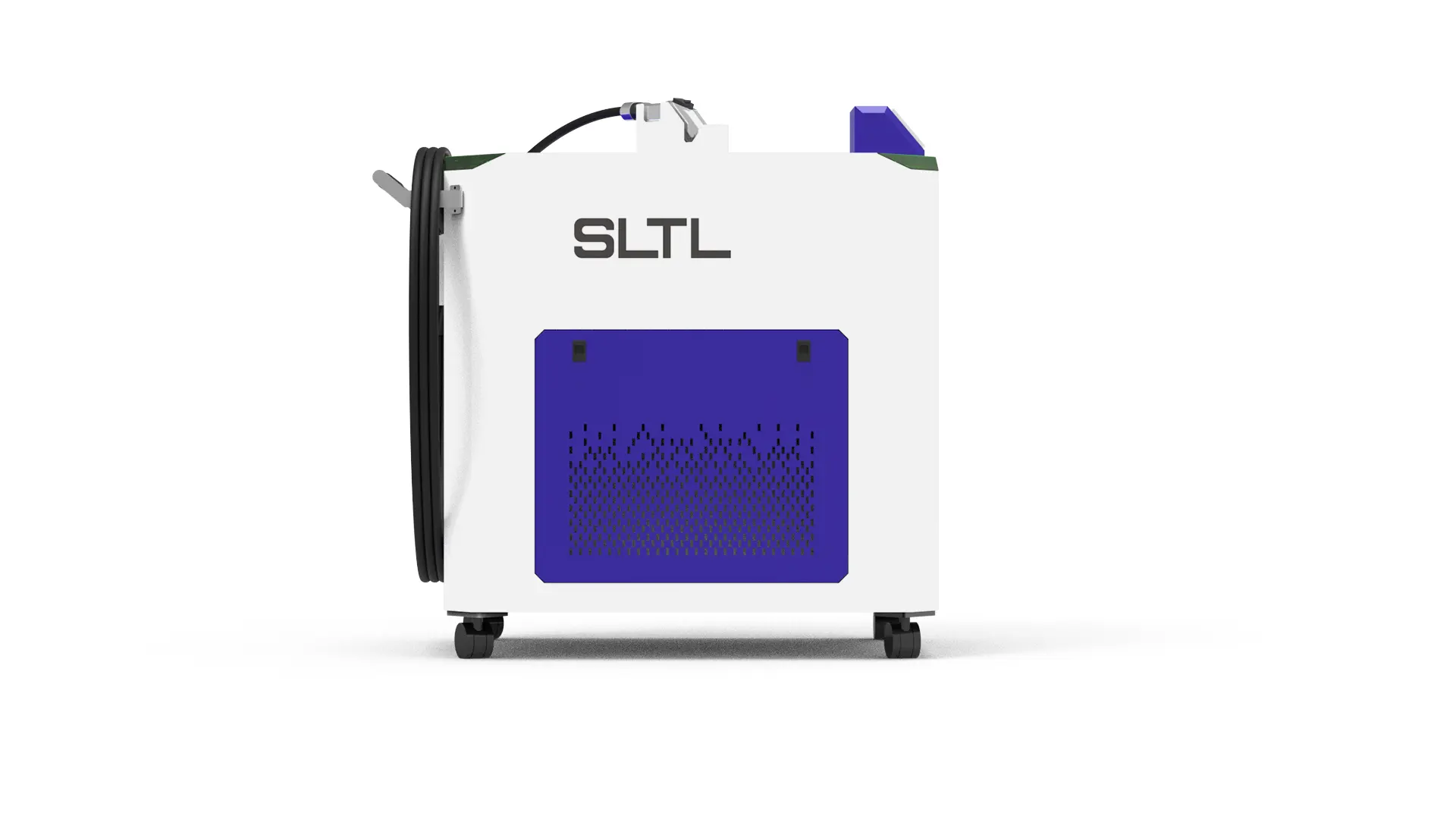

Hertz – Handheld Laser Welding Machine
Overview
The supersonic Laser welding machine is designed to flexibly weld the diversified shapes and sizes of components with the highest strength and seamless joints.
Specifications
| Specification & Power | Watts | 1500 | 2000 | 3000 |
| Wave Length | nm | 1080 ± 10 | 1080 ± 10 | 1080 ± 10 |
| Mode of Operation | Continuous Wave(CW) | Continuous Wave(CW) | Continuous Wave(CW) | |
| Output Power Tunability % 10 - 100 | 10 - 100 | 10 - 100 | ||
| Modulation Frequency | Hz | 0 - 5000 | 0 - 5000 | 0 - 5000 |
| Power Supply | 230 ± 5 % VAC, 1 Ø, 50 / 60 Hz | 230 ± 5 % VAC, 1 Ø, 50 / 60 Hz | 415 ± 5 % 3 Ø, 50 / 60 Hz | |
| Overall Size(L × B × H) | mm | 1300×685×1200 | 1300×685×1200 | 1300×685×1200 |
| Weight(Approx) | kg | 150 | 150 | 150 |
| Maximum Power | kW | 10 | 12 | 15 |
| Position Indication | Red Light | Red Light | Red Light | |
| Welding Nozzle Wire Length | mtr | 10 | 10 | 10 |
| Operation Temperature | ° C | 10 to 50 | 10 to 50 | 10 to 50 |
| * Welding Thickness | mm | Mild Steel – 6 | Stainless Steel – 5 | Aluminum – 3 | Aluminum Alloy – 3 | Galvanized Iron – 2 |
Features
- Portability With Performance
- Eliminate Consumables
- High-Quality Welding Seam
- Superior Weld Strength
- Eliminate Material Deformation
- Velocious Welding
- Reduced HAZ
