Laser Engraving Machine
NEO
Overview

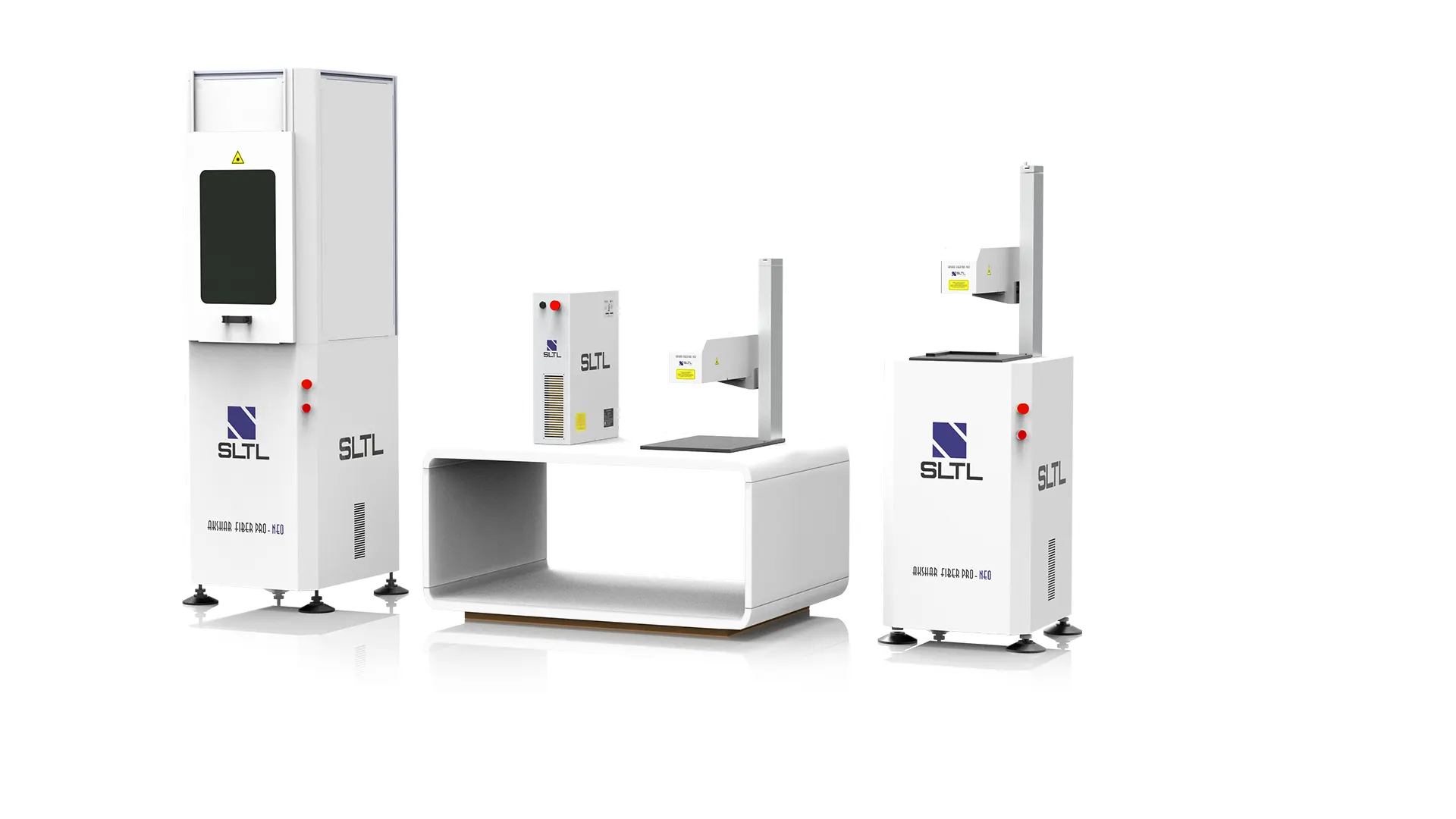

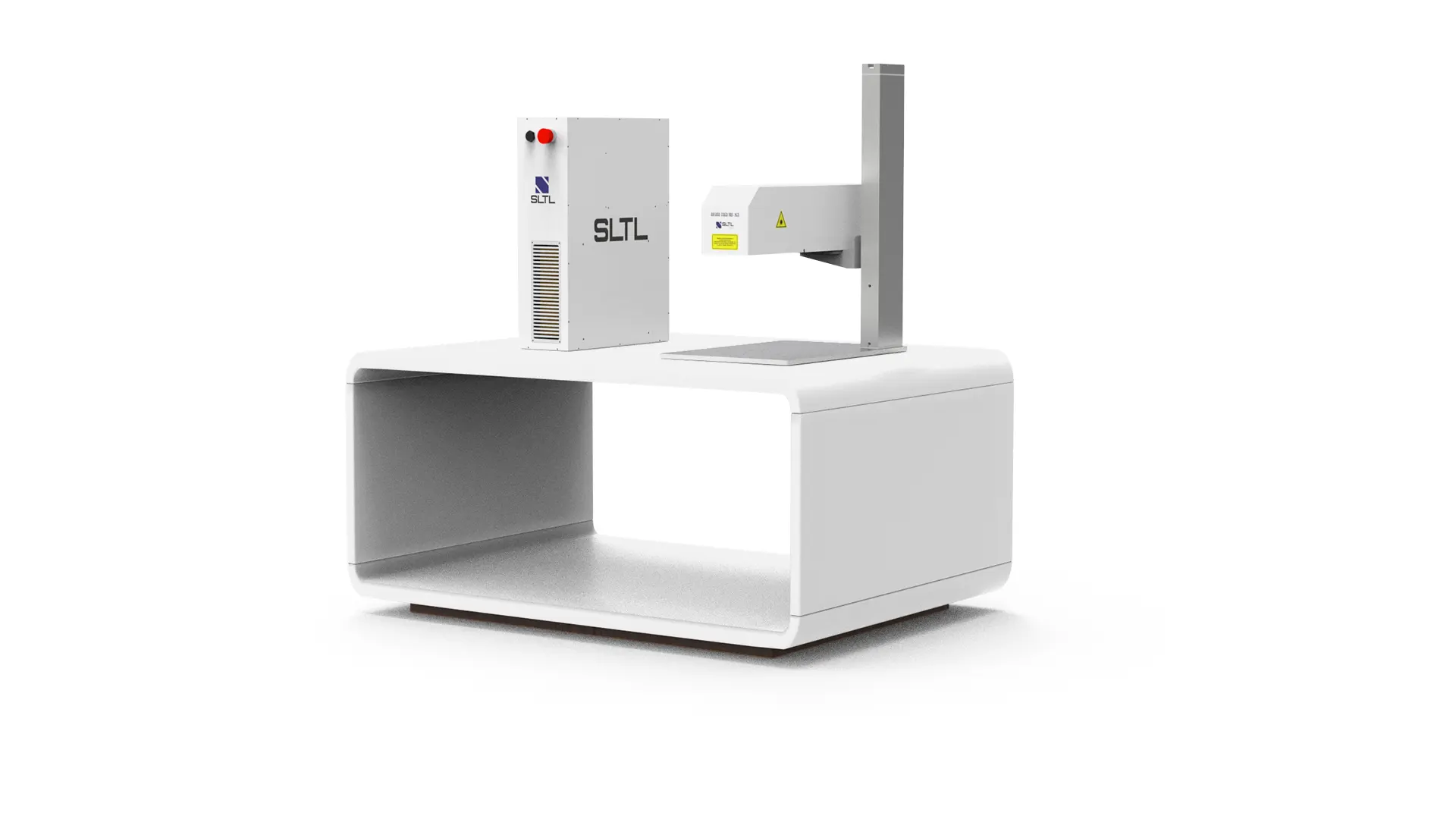

It is a compact fibre laser marking and engraving machine that marks with promptness and precision and can also be integrated into conveyor belts for fast functioning.
Specifications
| Model | Unit | Without Table | With Table |
| Laser Type | Fiber Laser | Fiber Laser | |
| Laser Power | W | 20 | 30 | 50 | 60 | 20 | 30 | 50 | 60 |
| Mode of Operation | Pulsed | Pulsed | |
| Max. Peak Power | kW | > 7.5 | > 7.5 |
| Operating Temperature | Up to 40 °C | Up to 40 °C | |
| Lens | F – Theta | F – Theta | |
| Wave Length | nm | 1060 ±10 | 1060 ±10 |
| Marking Area | mm | 180 x 180 | 180 x 180 |
| Repeatability | micron | ≤80 | ≤80 |
| Working Area | mm | 320 x 320 | 450 x 320 |
| Overall Size (L * B * H) | mm | 550 x 550 x 620 | 550 x 550 x 1500 |
| Gross Weight | kg | 35 | 100 |
| Travel (Manual / Motorized) | mm | 300 | 300 |
| Maximum Job Load | kg | 100 | 100 |
| Software | Mark - Pro | Mark - Pro |
Features
- Engineered To Match Coding With Speed
- Seamlessly Integrable In the Production Line
- Quick and Efficient
- Intuitive & High-Performance Software
- Adjustable Height
- Modular Product Architecture
