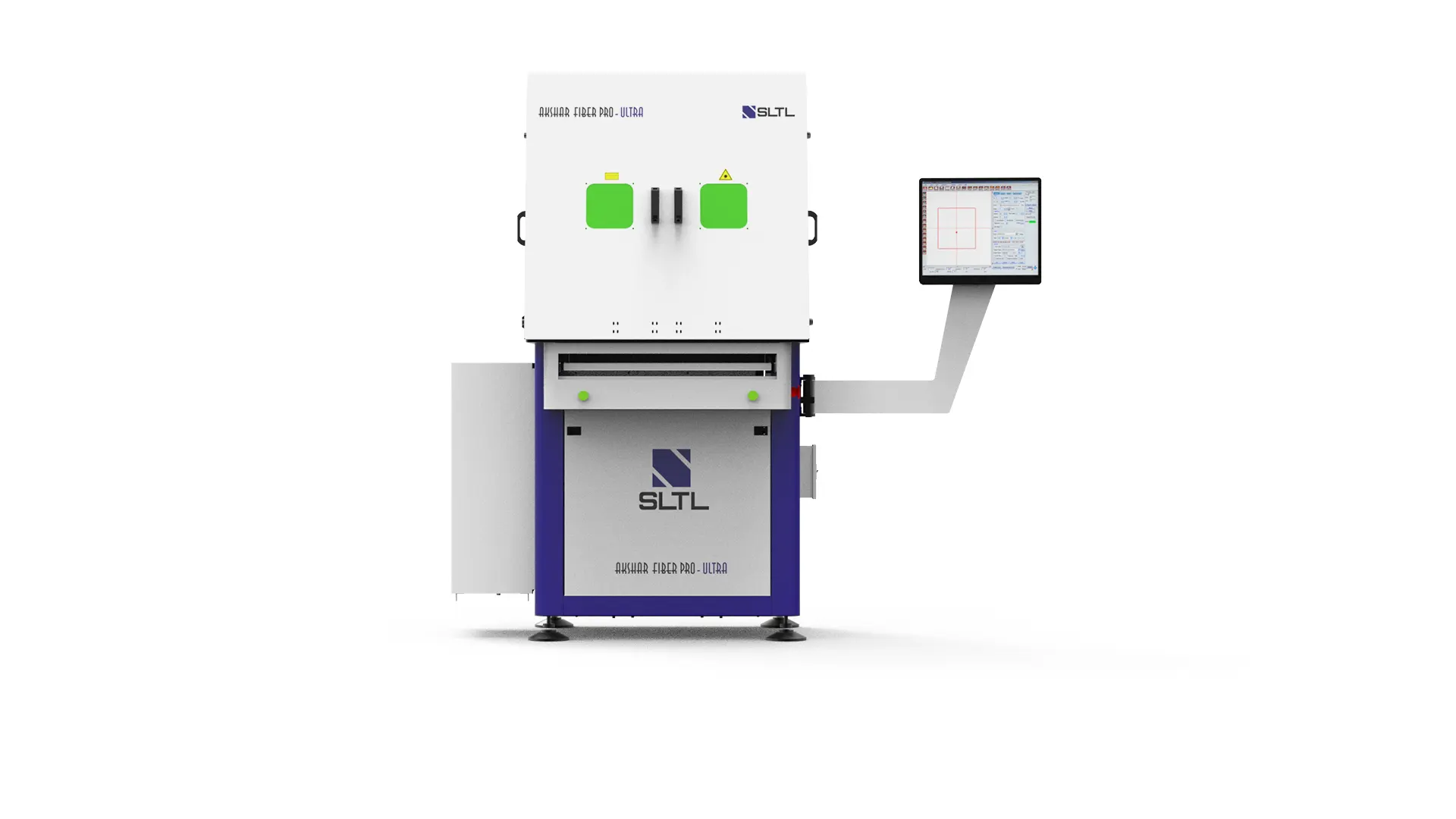

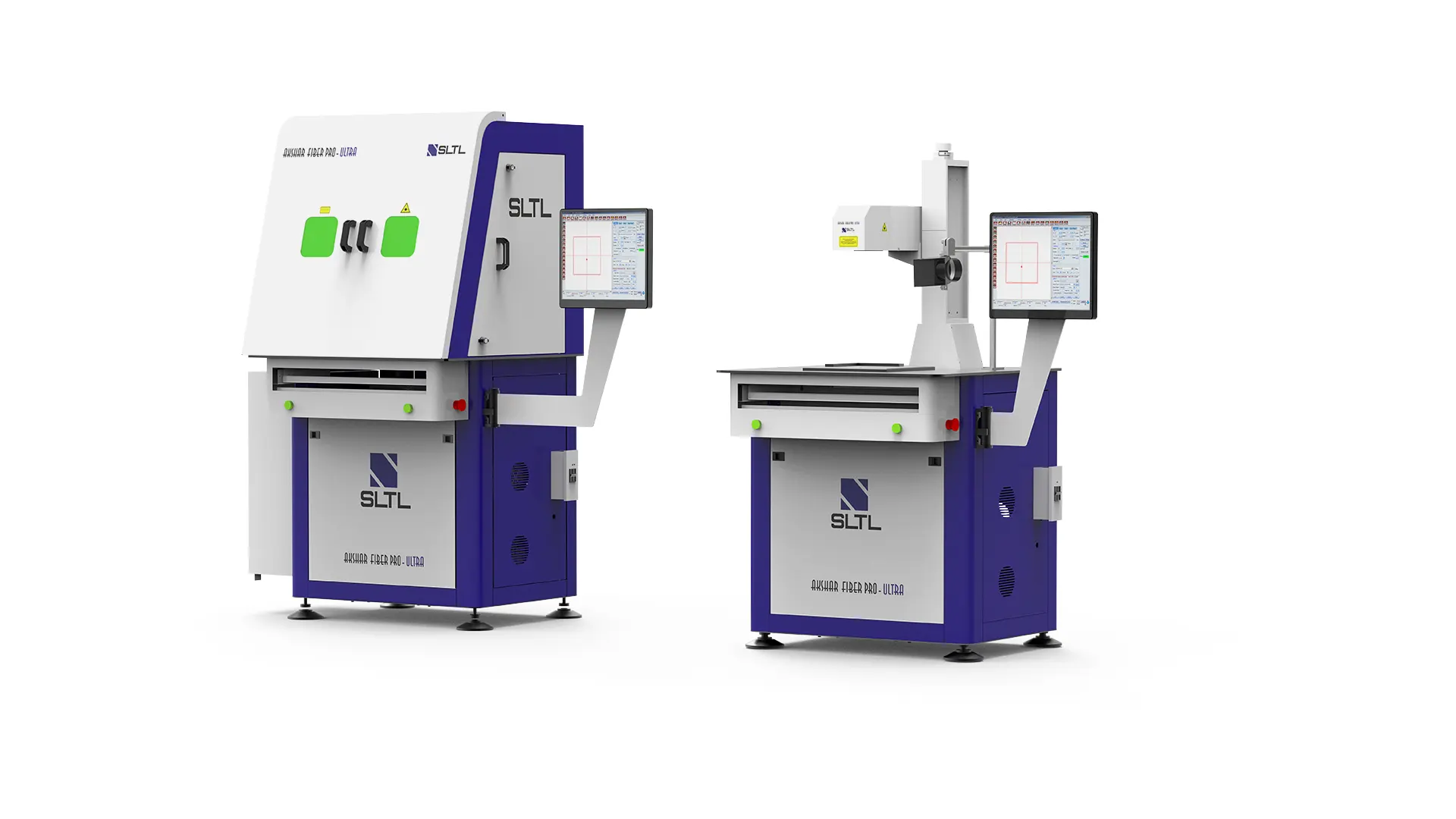

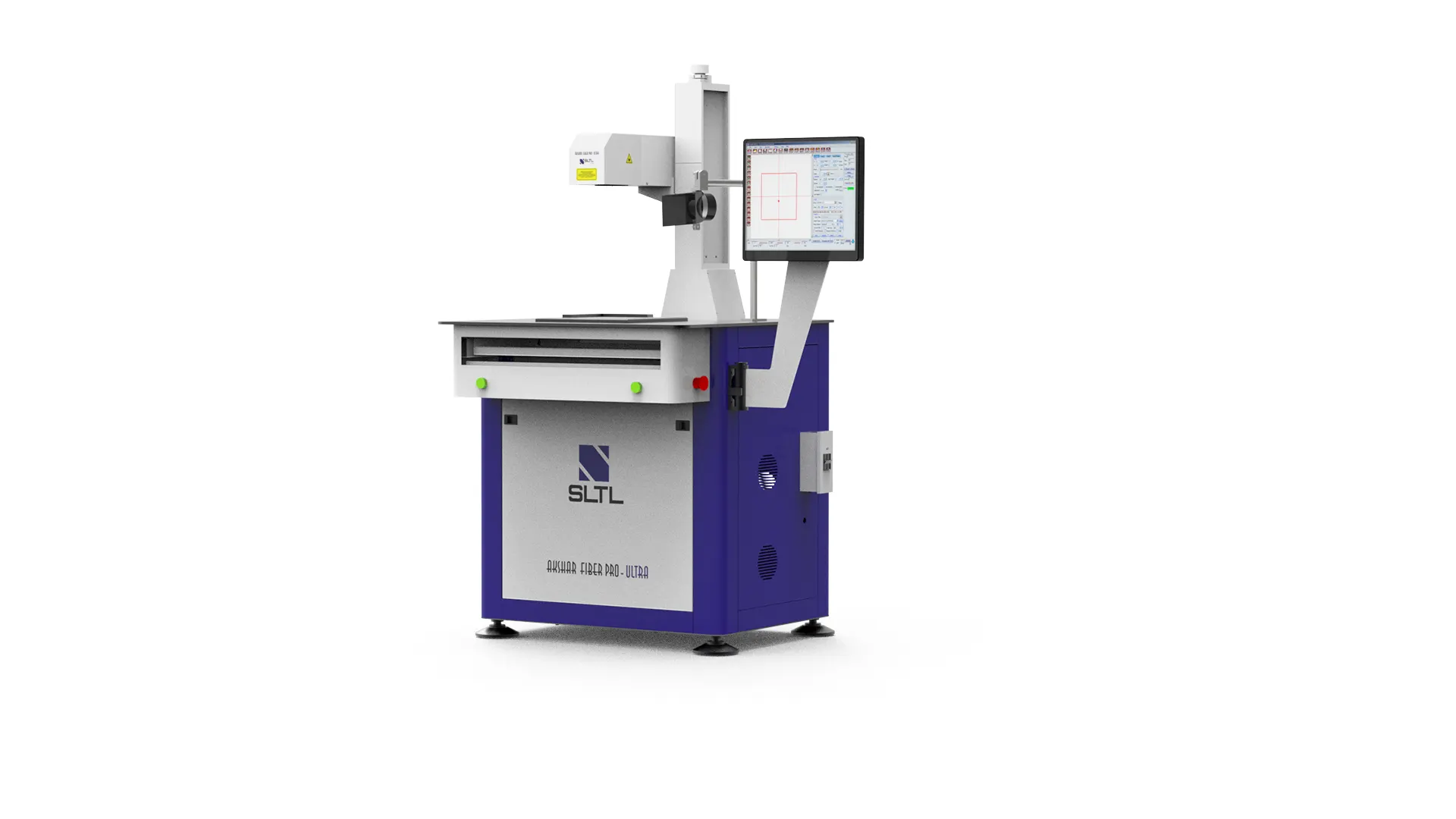

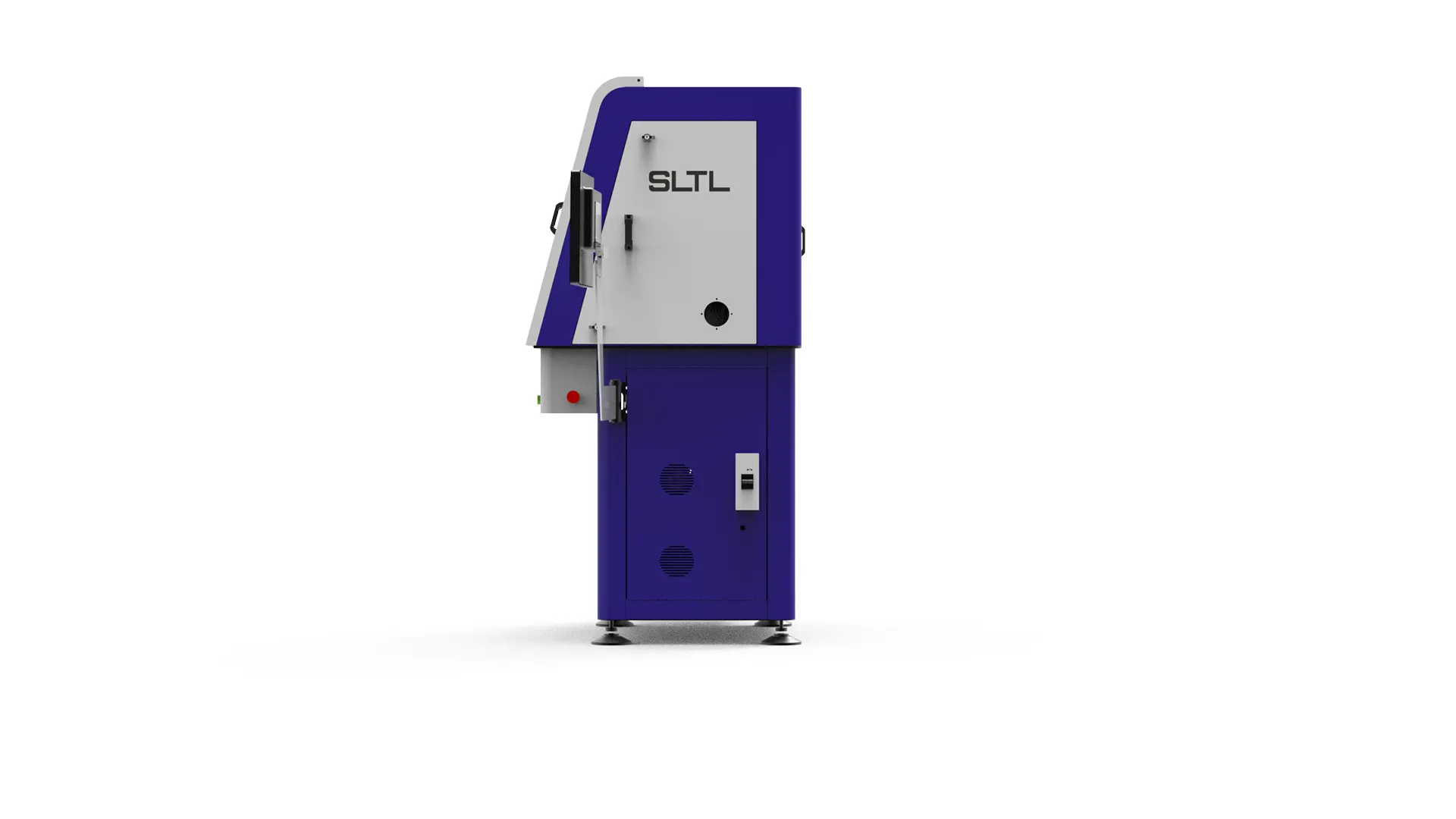

Laser Engraving Machine
Ultra
Overview
The machines offer high contrast and superficial marking at the highest speed on almost all the components with the ultra-fine designs
Specifications
| Unit | ||
| Laser | Fiber Laser | |
| Laser Power | W | 20 | 30 | 50 | 60 | 100 | 120 |
| Mode of Operation | Pulsed | |
| Maximum Peak Power | kW | > 7.5 |
| Operating Temperature | Up to 40 °C | |
| Lens | F – Theta | |
| Wave Length | nm | 1060 ±10 |
| Repeatability | micron | ≤80 |
| Working Area | mm | 500 x 500 |
| Overall Size (L * B * H) | mm | 1300 x 850 x 1600 |
| Gross Weight | kg | 180 |
| Travel (Manual / Motorized) | mm | 300 |
| Maximum Job Load | kg | 100 |
| Software | Mark - Pro |
Features
- Para Matrix & Para Vault
- Fast Focal Position Adjustment
- Fast Focal Position Adjustment
- Intuitive & High-Performance Software
- Counterfeit Protection
