Laser Engraving Machine
Flexy
Overview

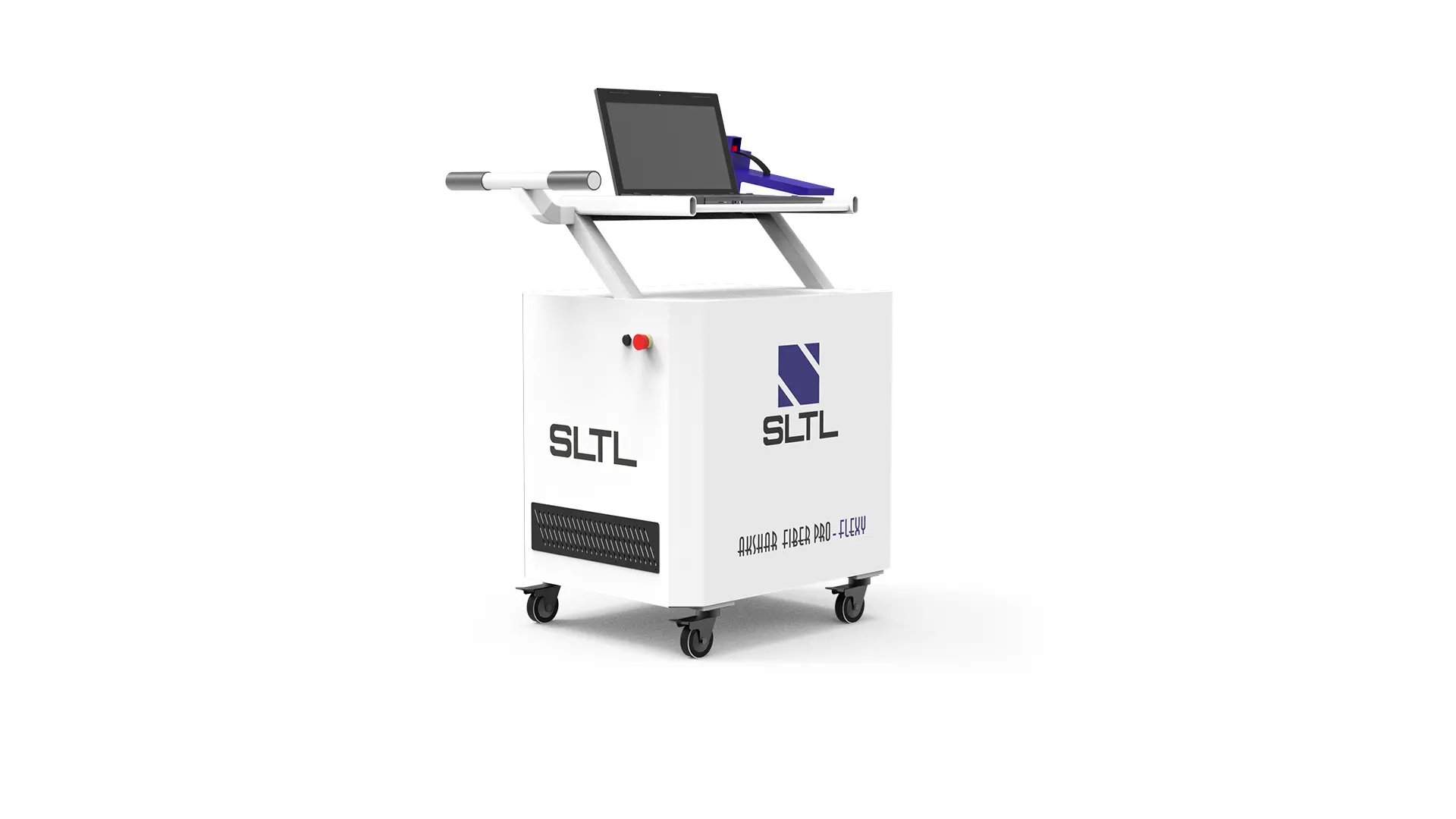

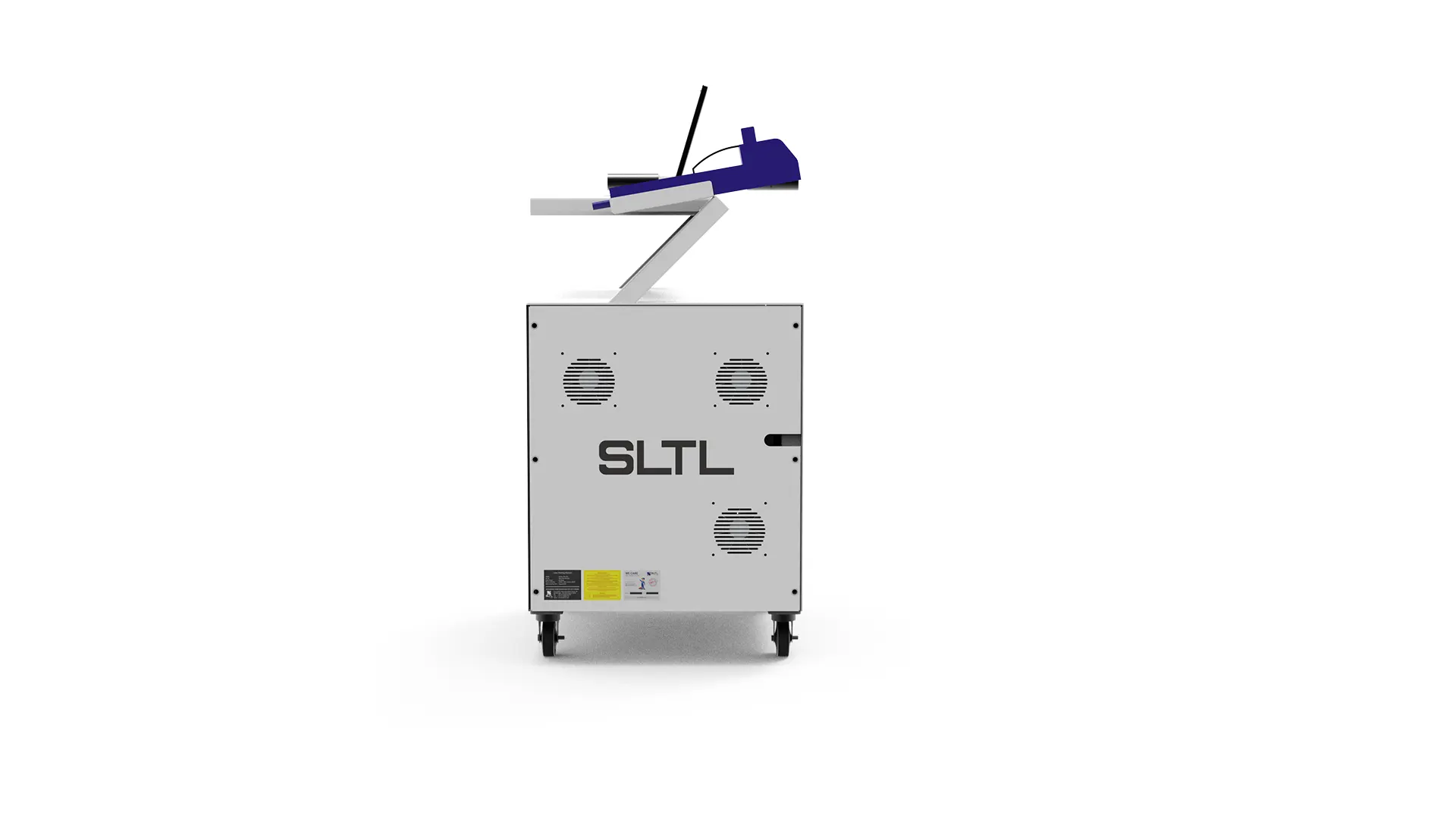

Flexy is an ultra-portable, handheld fiber laser marking machine model which is convenient for heavy and fixed components to imprint permanent marks.
Specifications
| Unit | ||
| Laser | Mutimode Pump Diode Fiber Laser | |
| Laser Power | W | 20 | 30 | 50 |
| Mode of Operation | Pulsed | |
| Max. Peak Power | kW | > 7.5 |
| Operating Temperature | Up to 40 °C | |
| Lens | F – Theta | |
| Wave Length | nm | 1060 ±10 |
| Marking Area | mm | 100 x 100 |
| Resolution | micron | 5 |
| Repeatability | micron | ≤ 80 |
| Hand Held Unit Weight | kg | 3 |
| Hand Held Unit Dimension (L * B * H) | mm | 430 x 90 x 100 |
| With Marking Focus Stand (L * B * H) | mm | 430 x 90 x 300 |
| Machine Weight | kg | 150 |
| Machine Dimension (L * B * H) | mm | 800 x 560 x 1200 |
Features
- Efficiency at Best
- Small Package/Compact/Portable
- A Class Apart Marking Execution
- Reduced Operating Costs
- Fast Focal Position Adjustment
- Flexibility at Its Best
- Conveniently Process Multiple Materials
