Laser Engraving Machine

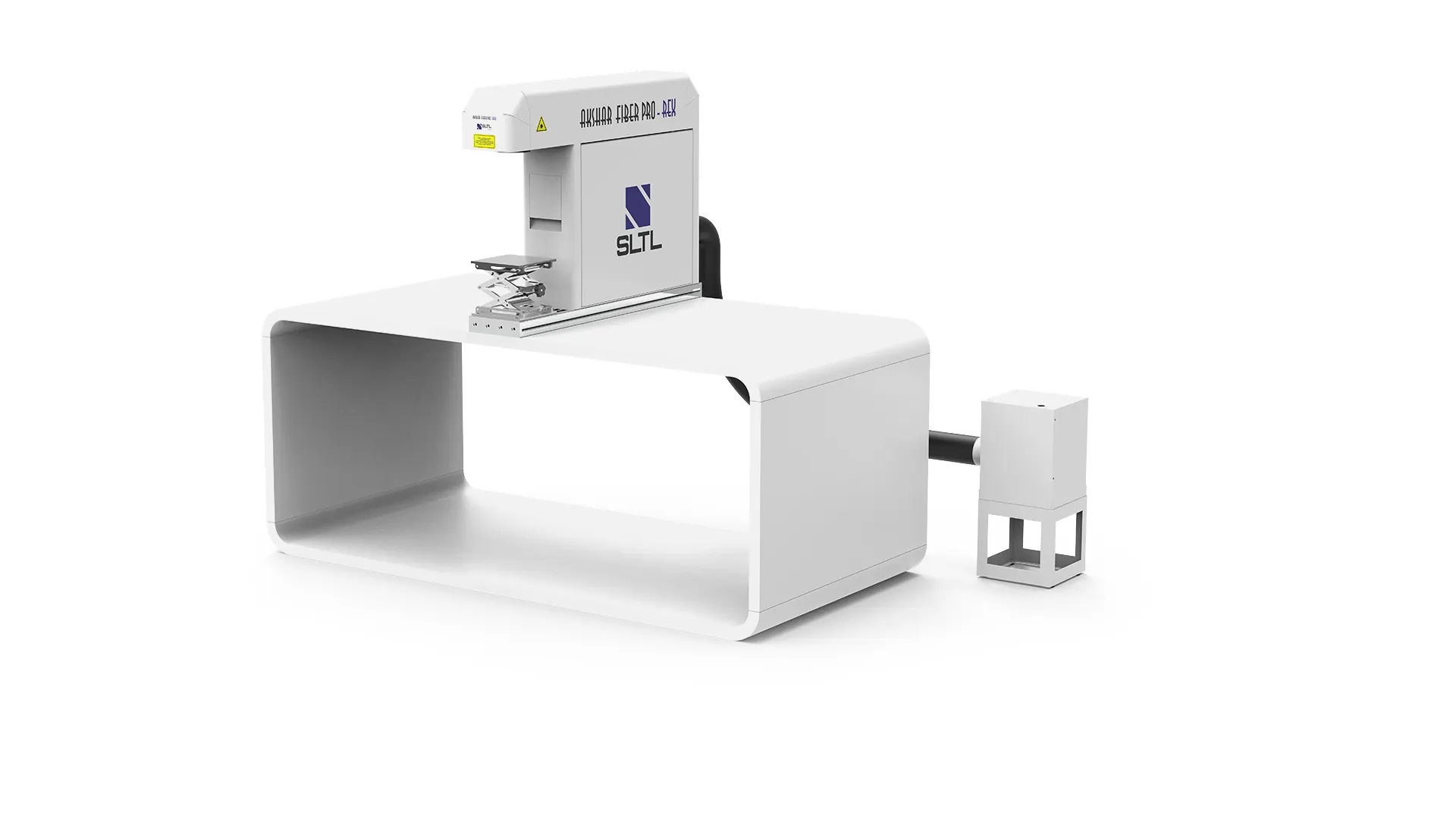

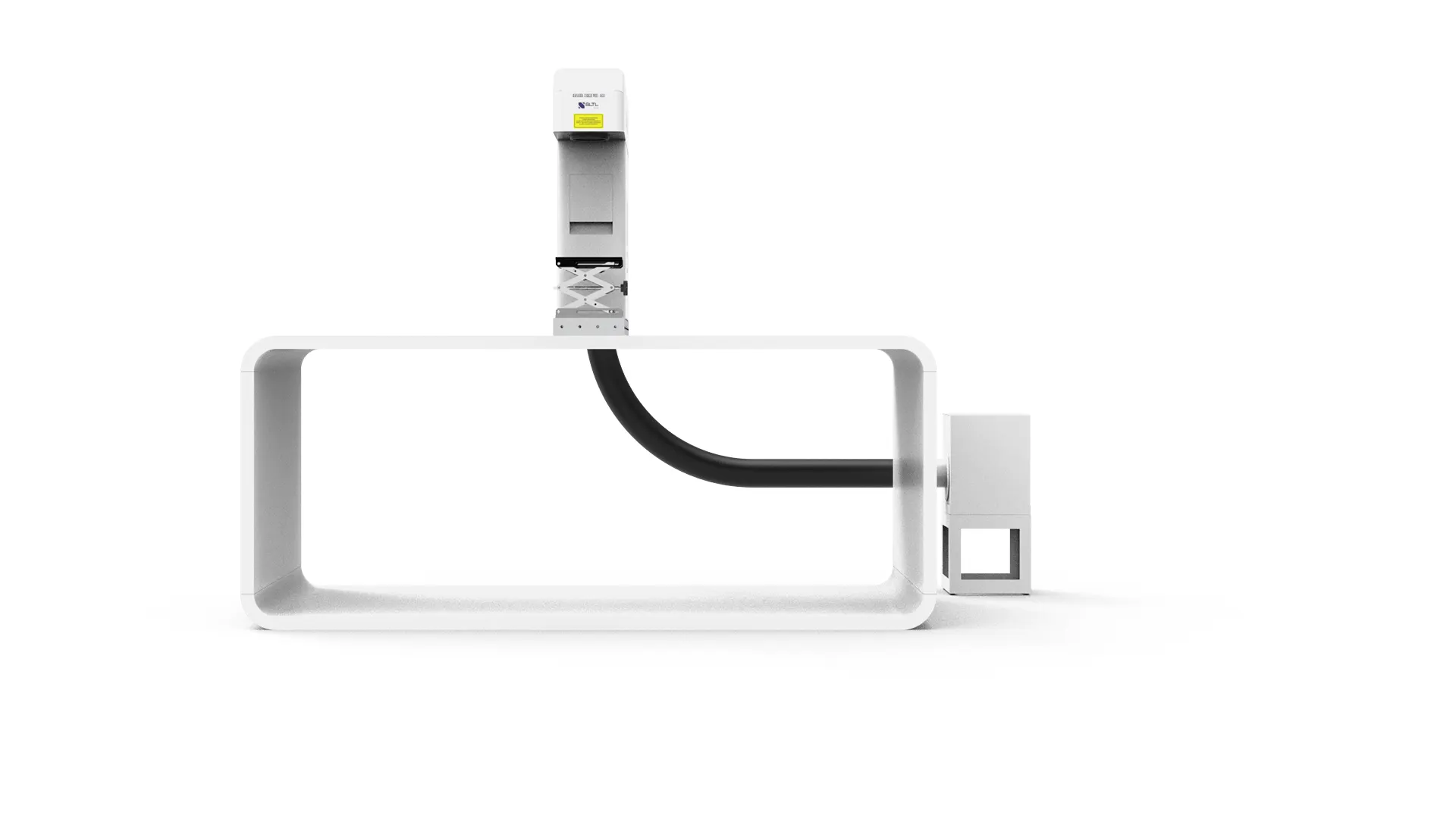

REX
Overview
REX is a high-speed laser engraving and marking machine which can be used in various industries due to its compact size and promptness.
Specifications
| Unit | ||
| Laser | Multimode Pump Diode Fiber Laser | |
| Laser Power | W | 20 |
| Mode of Operation | Pulsed | |
| Maximum Peak Power | kW | > 7.5 |
| Operating Temperature | Up to 40 °C | |
| Lens | F - Theta | |
| Wave Length | nm | 1060 ±10 |
| Marking Area | mm | 150 x 150, 100(Optional) |
| Repeatability | Micron | ≤ 80 |
| Working Area | mm | 150 x 150 |
| Overall Size | mm | 850 x 180 x 610 |
| Gross Weight | kg | 45 |
| Travel | mm | 150 |
| Maximum Load | kg | 5 |
| Software | Mark Pro |
Features
- Plug & Play Marking
- Redefined Compactness
- Lightest Marking System
- Intuitive and User-Friendly Software
- Para Matrix & Para Vault
