XRF Gold Analyzer

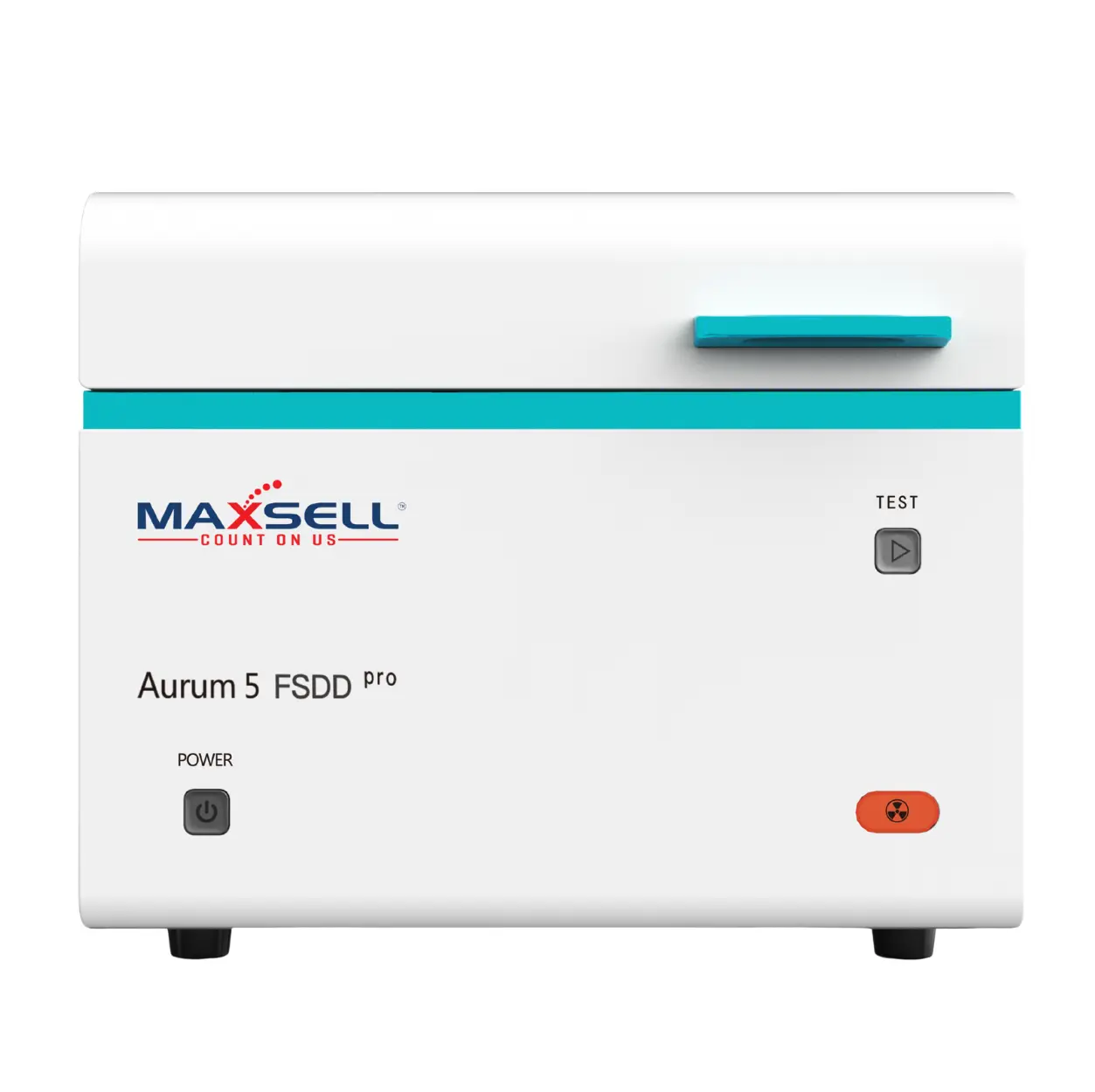

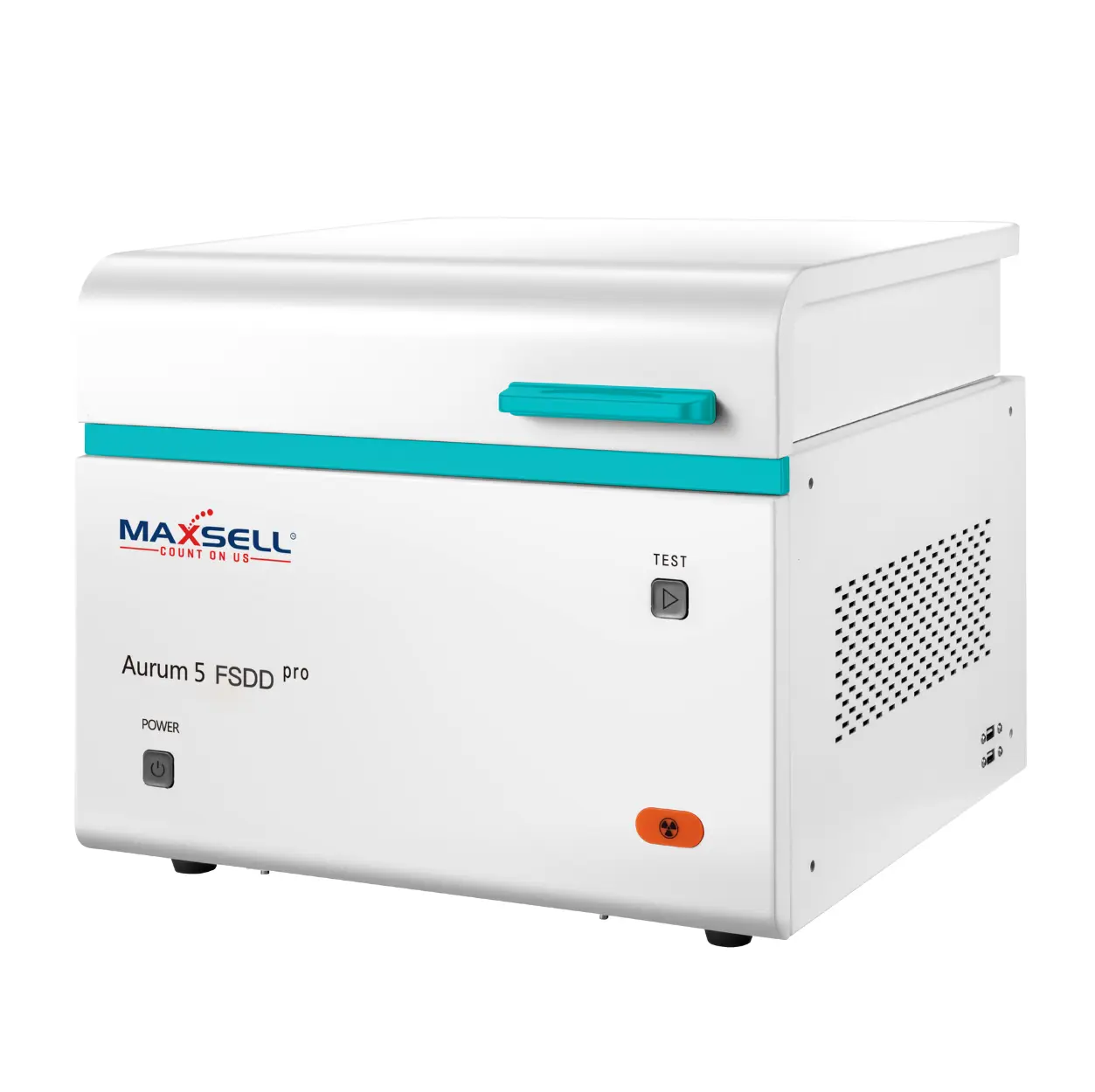

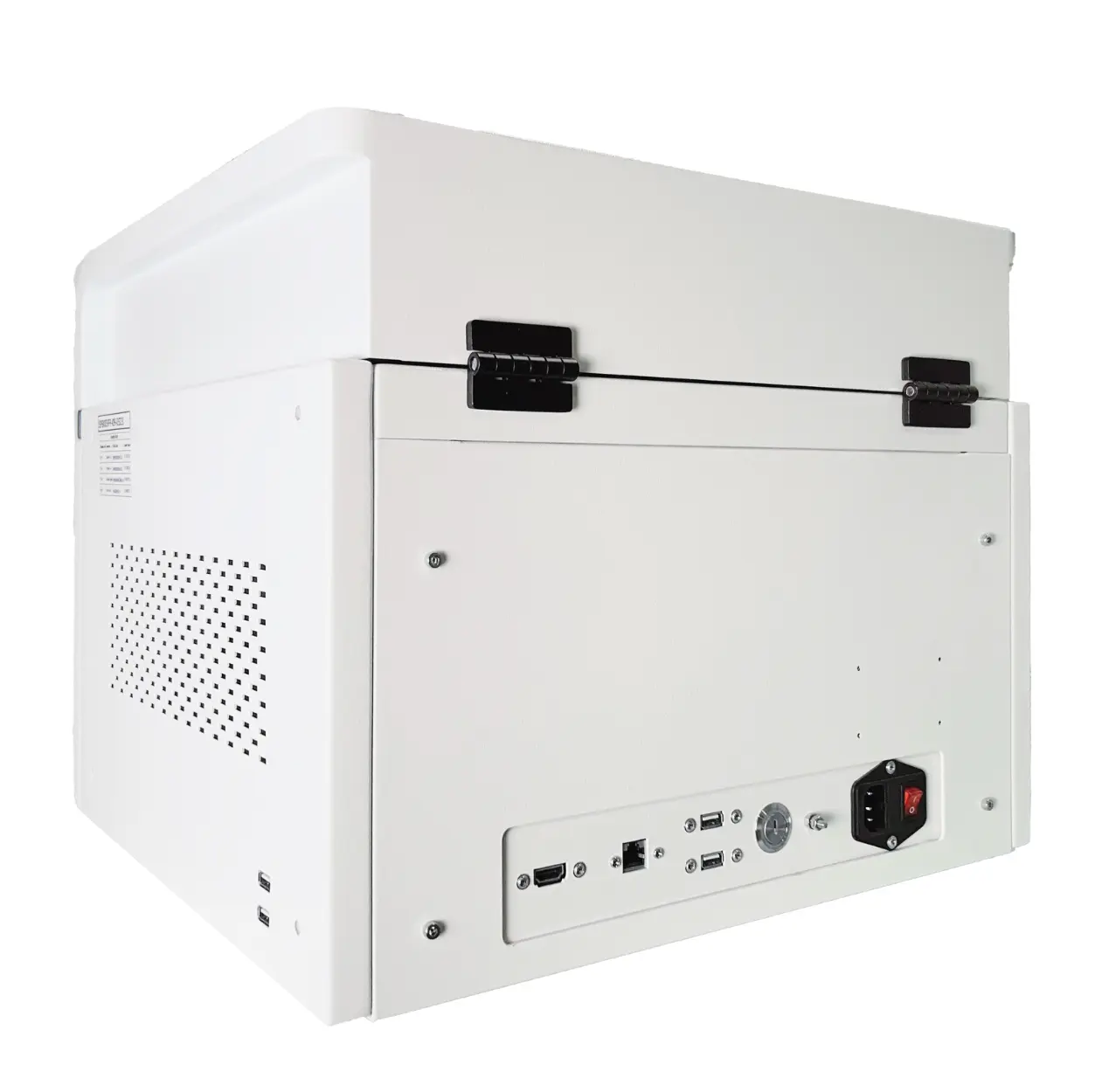

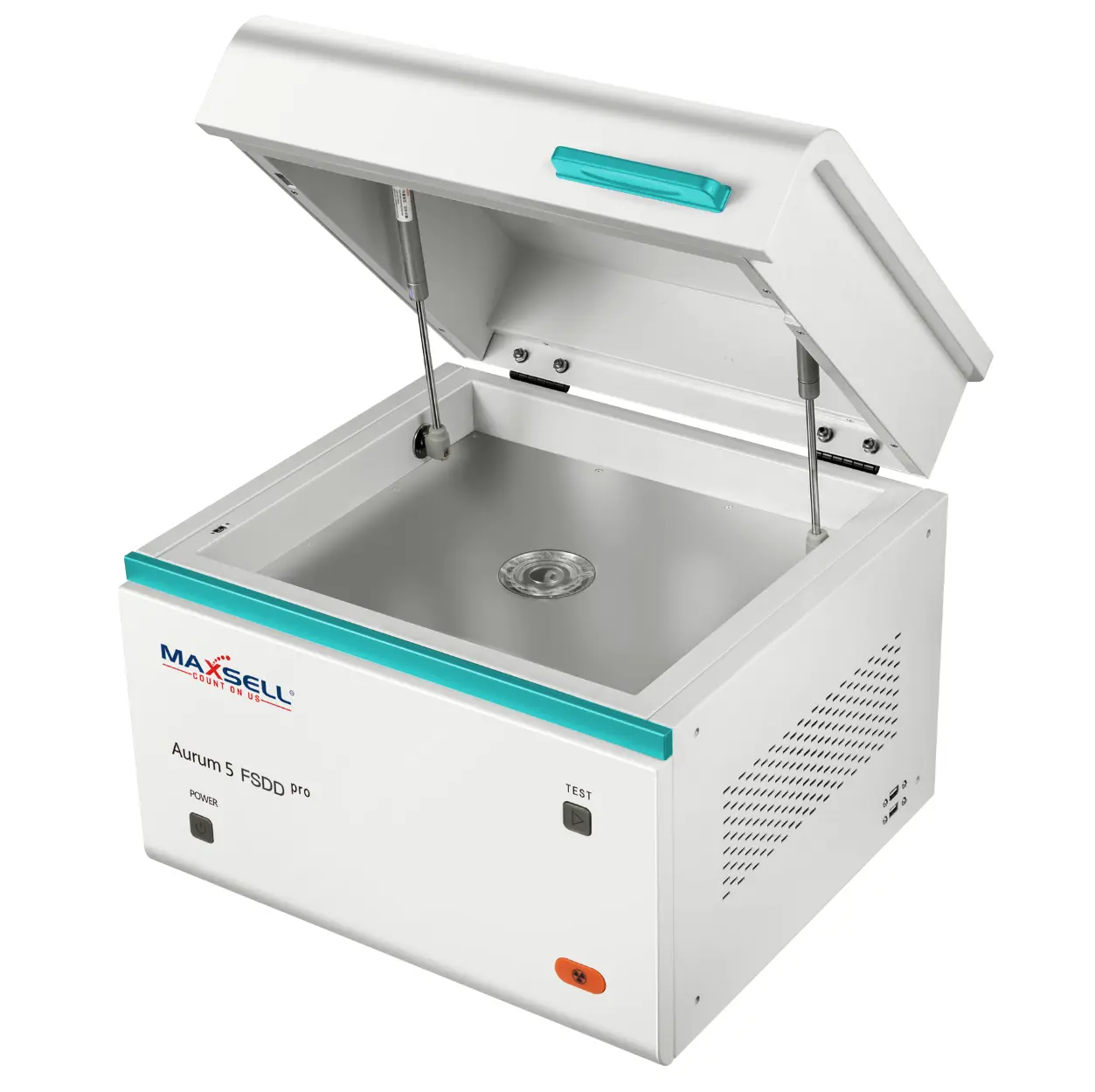

Aurum5 FSDD Pro Coating Thickness XRF Spectrometer
Overview
Aurum5 FSDD Pro – The Ultimate EDXRF Spectrometer for Precision Metal Analysis
Specifications
| Analysis Elements | Al (13) – U (92) (Up to 30 elements simultaneously) |
| Measurement Capabilities | Bulk metal composition, coating thickness, liquid metal analysis |
| Detector Technology | AMPTEK Fast-SDD with 25mm² area, 125±5 eV resolution |
| X-ray Tube | 50kV / 1mA, Be-Window with Wolfram Target |
| Test Precision | ±0.01% for 9999 gold, RSD ±1.5% for 1μm coating thickness |
| Collimators & Filters | Dual collimators(ϕ0.5mm / ϕ1.5mm) with multiple filter options |
| Built-in PC | Intel i5 Quad-Core, Windows 11, Smart FP Algorithm |
| Test Chamber Size | 366mm x 336mm x 141mm |
| Operating Power | 180W, AC 100–240V, 50Hz |
| Compliance Standards | ISO3497: 2000, GB / T16921, ASTM-B658 |
| Automation Features | Optional 10-sample turntable for continuous testing |
| User Interface | Touchscreen-enabled, external network control & data monitoring |
Features
- Ultra-Precise Metal Composition Analysis
- Bulk, Coating, and Liquid Metal Testing
- FSDD Detector for Unmatched Accuracy
- Smart FP Algorithm for Reliable Results
- Industrial-Grade Performance with Built-in PC
