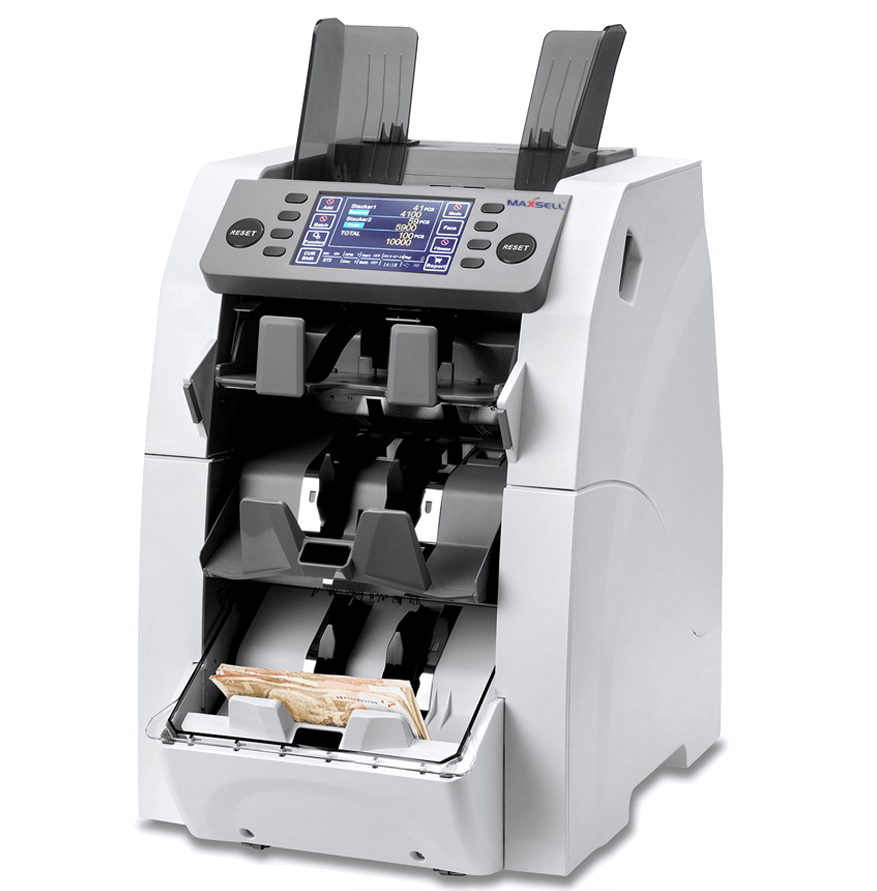

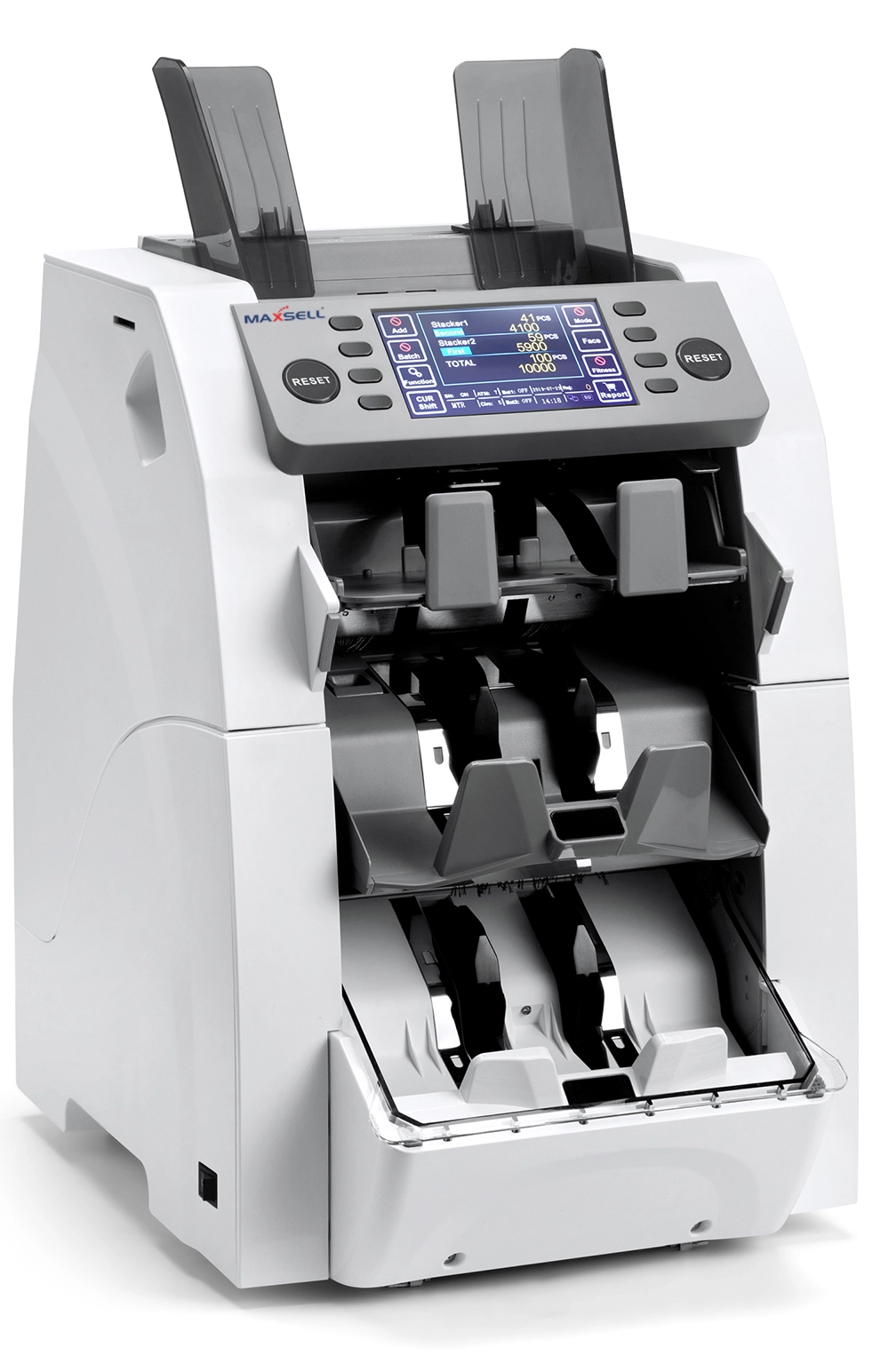

Matrix 8300 – 2+1 Pocket Note Sorting Machine | German-Engineered
Overview
Advanced Banknote Sorting with Cutting Edge Detection and Serial Number Management
Specifications
| Counting speed | 800~1200 Notes/min |
| Hopper capacity | 1000 Notes(Continuous Feeding) |
| Stacker capacity | 200 Notes |
| Reject Capacity | 100 Notes |
| Detection technology | Twin CIS, UV, MG, MT, IR, 2D & 3D |
| Noise | ≤60Db |
| Power supply | 100 - 240V AC, 50 / 60Hz 3.0A |
| Power consumption | ≤90W |
| Dimensions | 390(L) * 310(W) * 520(H)mm |
| Weight | 30Kg |

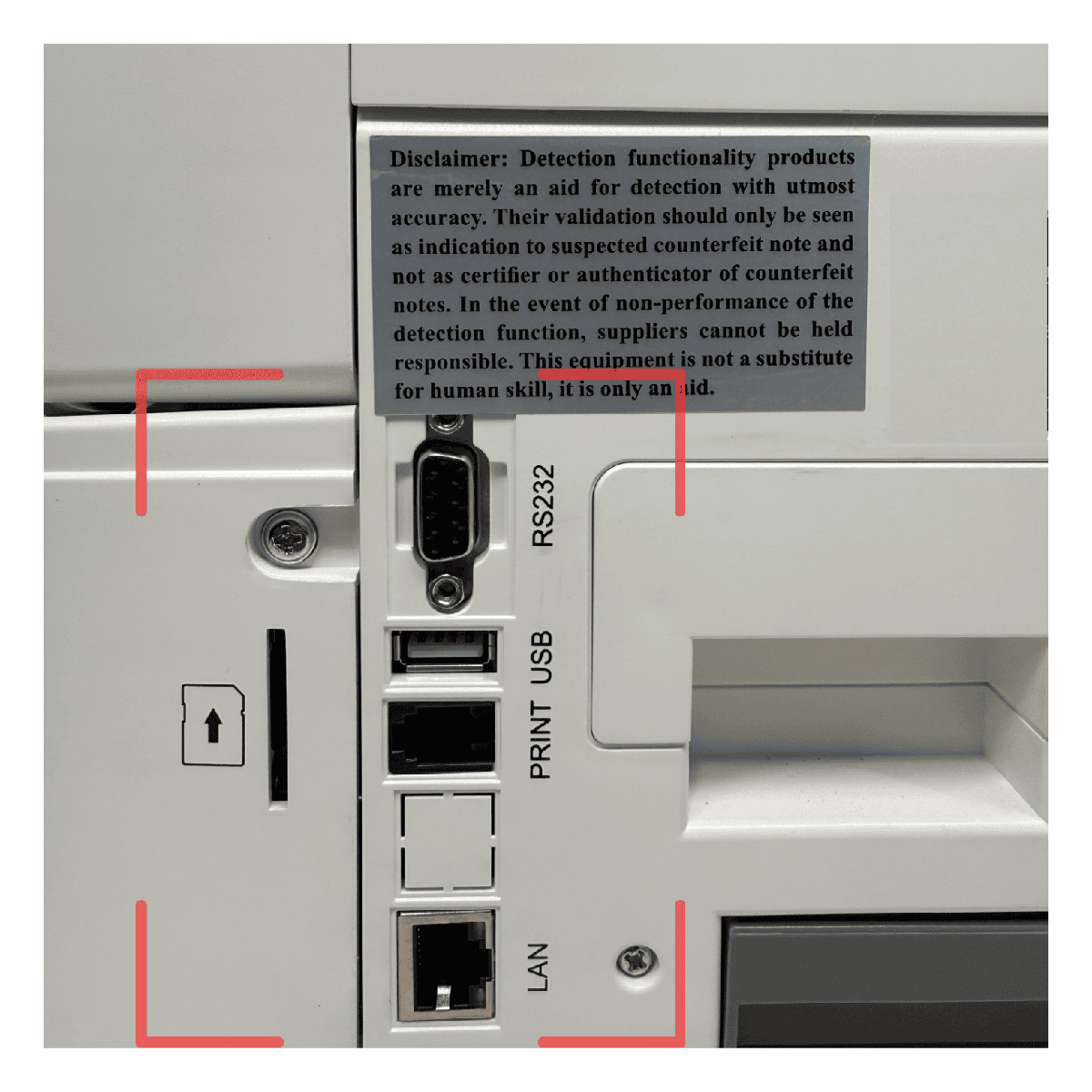

| Interface | RS - 232, Printer, USB, SD card, LAN |
Features

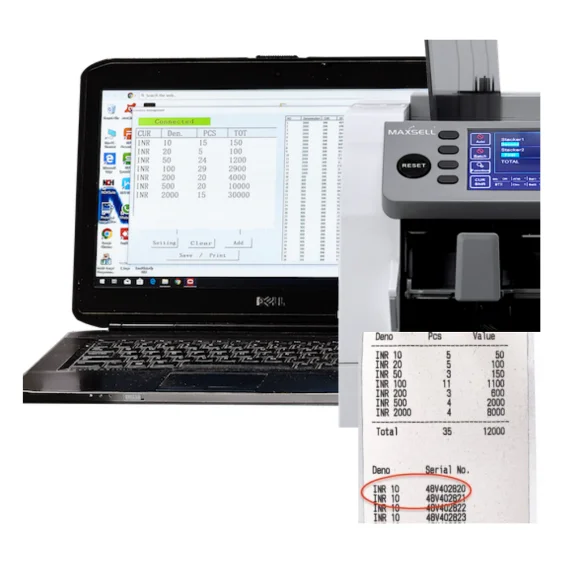

- Accurate Serial number recognition, Storage & management
- Double face image recognition, Fitness Sorting, Denomination Sorting, Face, Orientation sorting etc.
- Sophisticated counterfeit note detection by Thickness, IR, MT, Image, FL

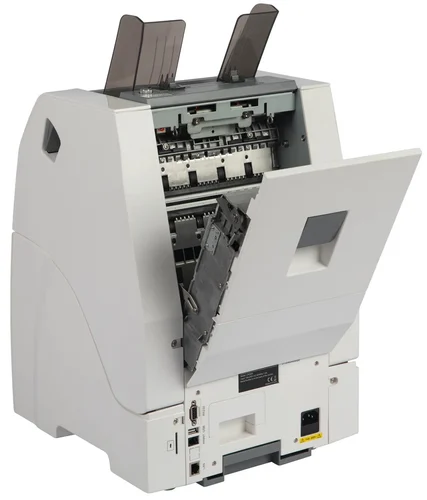

- Easily open from front and rear side for maintenance.
- Built-in dust collection design, fully automatic banknote dustproof door.
- Humanized intelligent design with dual-operator user interface; large color touch screen LCD, Key-press and touch screen available.
- Program downloading through SD Card, USB port and LAN.
- Twin Dust collector tray
- Noise & Dust block door which can help user from getting affected due to currency dust.
- Mechanical Tape and thickness detection for reliability in detection.

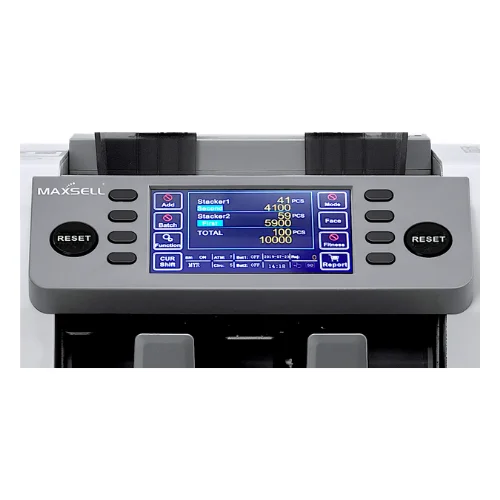

- Dual operator UI & Large LCD display
- Software upgrade via USB, SD card or LAN
