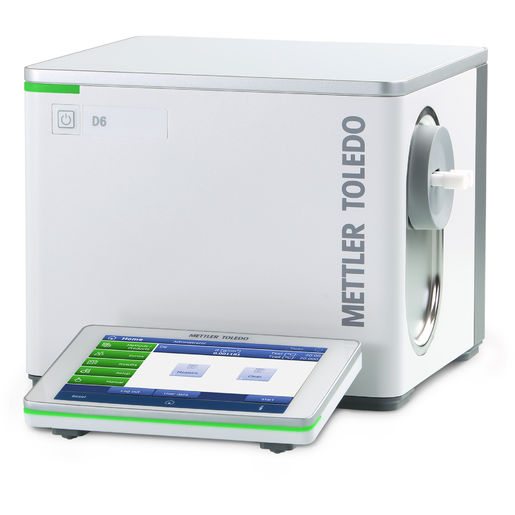

Density meter Excellence D6
Overview
Accurate, intuitive, and modular, the Excellence D6 offers fast measurements with automatic temperature control, a real-time video view of the measuring cell and automatic viscosity correction. Everything via an incredibly easy-to-use user interface.
Specifications
| Accuracy ± (g / cm³) | 0.000005 g / cm3 |
| Repeatability(g / cm³) | 0.000001 g / cm3 |
| Resolution(g / cm³) | 0.000001 g / cm3 |
| Temperature Control Range | 0 °C – 95 °C |
| Measurement Scales | Density, Specific gravity, Alcohol, Acid, API, Sugar, Urea, User - defined concentration, Up to 30 user - defined concentration tables(can be entered as tables or formulas). |
| Weight | 17.5 kg |
| Connectivity | HDMI(Terminal), USB client(PC Software), Ethernet(Network and PC Software), 3 × USB host(printer, memory stick, barcode reader, hub, keyboard, mouse), RS232(Automation units), CAN(Multiple LevelSens) |
| Minimum Sample Volume | 1.50 mL |
| Built -in Measurement Scales | Density / Specific gravity, Alcohol tables, Acids / bases and chemical tables, User programmable tables / functions, Brix / Sugar tables |
| Minimum Sample Volume | 1.5 mL |
| Product Type | Benchtop Density Meter |
| Display / User interface | 7" display with color touchscreen |
| PC Software | LabX Express and Server |
| Automatic bubble detection(BubbleCheck™) | Yes |
| Automatic sample detection | Yes |
| Automatic viscosity correction | Yes |
| Automation for Enhanced Workflow | Autosampler(up to 303 samples), Multiparameter(refractive index, color, pH, etc), Sampling and cleaning(1 sample) |
| Barcode reader connectivity | Yes |
| Clean check | Yes |
| Color- coded result identification | Yes |
| Compliance / Data Security | Audit Trail(requires LabX software), Data integrity(requires LabX software), 21 CFR part 11 / EU Annex 11(requires LabX software) |
| Dimensions(Width x Height x Depth) | 267 x 226 x 256 mm |
| Integrated drying pump | No |
| Integrated pressure sensor | Yes |
| Languages | English, Italian, French, Russian, Polish, Portuguese, Chinese, Korean, German, Spanish |
| LIMS connectivity | Yes |
| Measurement range(g / cm³) | 0 g / cm3 – 3 g / cm3 |
| Norms and Standards | Ph.Eur. 2.2.5, DIN EN ISO 3675, ISO 2811 - 3, AOAC Official Method 988.06, AOAC Official Methods of Analysis 950.28, 982.10(17th Ed), IP 200 / 52, GBT 11540 - 2008, ASTM D 4806, API Std 2540, ASTM D 1475, USP chapter 841(as of USP 29), GB / T 2013 - 2010, European Union Spirits drinks: COMMISSION REGULATION(EC) No 2870 / 2000, European Union Wines: COMMISSION REGULATION(EC) No 128 / 2004, ISO 18301, European Union Wines: COMMISSION REGULATION(EEC) No 2676 / 90, EN 14214: 2003, OIV MA - BS-04 and / or MA - BS-04OIV MA - BS-06 and / or MA - BS-06, ASTM D 2501, ASTM D 6448, ASTM D 1250, ASBC Beer - 2, ASBC Beer - 5, DIN 51757, Chinese pharmacopoeia 0601, GB / T 13531.4 - 2013, ISO / EN 15212 - 1, ISO 12185 - 2, Pharm.Eu. (2005) JP(2005) USP(2006), AOAC Official Methods of Analysis 920.57, 920.62(17th Ed), IP 365, ASTM D 5002, ISO 91, ANSI 1250, GB5009.225—2016, ASTM D 4052, OIV Analysis method for density measurement in wine and musts, ASTM D5931, OIV MA - BS-03 and / or MA - BS-03, JJF1070 - 2005, OIV Alcohol content in wine and musts |
| Note: | Accuracy valid under ideal conditions and for samples with low densities and viscosities |
| On - screen help texts | Yes |
| Standard compliance | www.mt.com / dere - norms |
| Temperature control | Yes |
| User Management | Yes |
| Video view | Yes |
