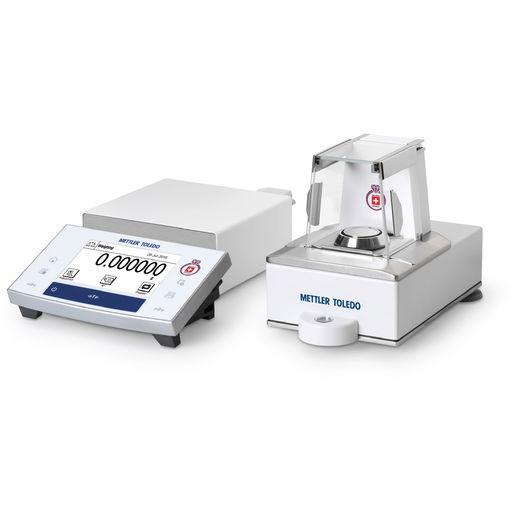

Weigh Module WXTJ3DU
Overview
Precise weighing for your smallest jewelry samples. 1.2 / 3.2 g capacity, 0.001 / 0.01 mg readability, high resolution weighing cell, touchscreen, FACT fully automatic internal adjustment, practical size
Specifications
| Maximum Capacity | 1.2 g/3.2 g |
| Readability | 0.001 mg, 0.01 mg |
| Repeatability, typical | 0.0008 mg |
| Minimum Weight(U = 1 %, k = 2), typical | 0.16 mg |
| Adjustment | Internal / FACT |
| Settling Time | 5 s |
| Connectivity | PC, Printer |
| Legal for Trade | No |
| Balance Model(Carat/ Gold) | Gold, Carat |
| Interfaces | RS232 |
| Display | Touchscreen |
| Weighing Pan Diameter | 32 mm |
| Repeatability, limit | 0.001 mg |
| Dimensions(Depth) | 261 mm |
| Dimensions(Height) | 165 mm |
| Dimensions(Width) | 127 mm |
| Housing | Die - cast aluminum |
| Class | I |
| Guaranteed Repeatability | 0.001 mg |
| Product Line | WXTJ |
